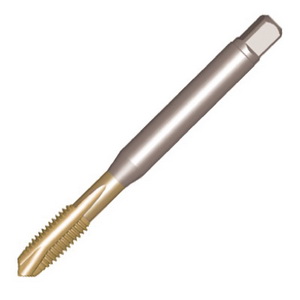

Sandvik Coromant 6967142 CoroTap™ 200 Spiral Point Cutting Tap, Imperial, 42437, UNC, 3 Flutes, 3BX Class of Fit, Right Hand, PM HSS, PVD Coated
Custom_Product_Images_Illustration
Sandvik Coromant 6967142 CoroTap™ 200 Spiral Point Cutting Tap, Imperial, 42437, UNC, 3 Flutes, 3BX Class of Fit, Right Hand, PM HSS, PVD Coated
SKU1080918
MFGR #6967142
$/ea
Spiral point taps push the chips forward and are used for through holes. They have the strongest tap design due to shallow flutes. The flutes are only used for cutting fluid, not for chip evacuation.
Spiral point taps push the chips forward and are used for through holes. They have the strongest tap design due to shallow flutes. The flutes are only used for cutting fluid, not for chip evacuation.
Alternate Catalog Number T200-XM100AE-3/8 C110 Catalog Number 6967142 Class of Fit 3BX Country of Origin IN Finish|Coating PVD Coated Gross Weight Per Pack 0.0900 lb Item Group 781 Measurement System Imperial Overall Length 4.087 in Series CoroTap™ 200 Shank Diameter 0.381 in Size 3/8-16 Standards DIN 2184-1, ANSI Specified Thread Length 0.839 in Thread Standard UNC Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Material PM HSS Number of Flutes 3 Edge treatment for reduced axial force and torque makes the tool run more smoothly, reduces risk of cutting edge chipping and improves surface quality, tool life and chip formation High speed powder steel taps for improved strength, wear resistance and tool life Taps optimized for specific materials and taps optimized for flexibility Up to 3xD depending on materials 0.315 in pre-machined hole diameter 0.287 in neck diameter 1.417 in flute length 3.937 in functional length 1.516 in usable length 2.831 in overhang B threading chamfer (3.5 to 5 threads) for high process security 7.5 deg threading chamfer C110 manufacturer grade 3/8 in thread diameter Applicable on K, M, N, P and S material grades Cutting tap for cylindrical threads with gun nose Features thread back taper property External coolant No coolant exit 2.5 usable length to diameter ratio
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | T200-XM100AE-3/8 C110 |
| Catalog Number | 6967142 |
| Class of Fit | 3BX |
| Country of Origin | IN |
| Finish|Coating | PVD Coated |
| Gross Weight Per Pack | 0.0900 lb |
| Item Group | 781 |
| Measurement System | Imperial |
| Overall Length | 4.087 in |
| Series | CoroTap™ 200 |
| Shank Diameter | 0.381 in |
| Size | 3/8-16 |
| Standards | DIN 2184-1, ANSI Specified |
| Thread Length | 0.839 in |
| Thread Standard | UNC |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Material | PM HSS |
| Number of Flutes | 3 |
| Edge treatment for reduced axial force and torque makes the tool run more smoothly, reduces risk of cutting edge chipping and improves surface quality, tool life and chip formation |
| High speed powder steel taps for improved strength, wear resistance and tool life |
| Taps optimized for specific materials and taps optimized for flexibility |
| Up to 3xD depending on materials |
| 0.315 in pre-machined hole diameter |
| 0.287 in neck diameter |
| 1.417 in flute length |
| 3.937 in functional length |
| 1.516 in usable length |
| 2.831 in overhang |
| B threading chamfer (3.5 to 5 threads) for high process security |
| 7.5 deg threading chamfer |
| C110 manufacturer grade |
| 3/8 in thread diameter |
| Applicable on K, M, N, P and S material grades |
| Cutting tap for cylindrical threads with gun nose |
| Features thread back taper property |
| External coolant |
| No coolant exit |
| 2.5 usable length to diameter ratio |
