Sandvik Coromant 6921707 CoroCut® QD Indexable Shank Tool, QD-NF-0250-0002-CM insert, F Insert Seat, Left Hand

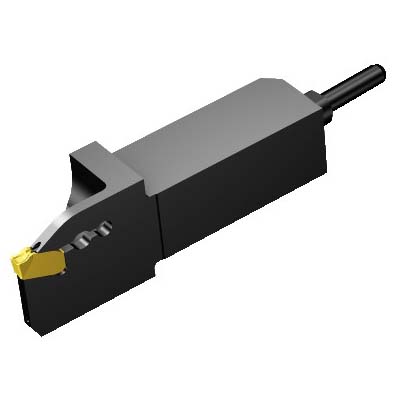

Custom_Product_Images_Illustration
Sandvik Coromant 6921707 CoroCut® QD Indexable Shank Tool, QD-NF-0250-0002-CM insert, F Insert Seat, Left Hand
SKU1244214
MFGR #6921707
$/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® QD, Insert Compatibility: QD-NF-0250-0002-CM, QS-QD-LFF0500C08S, 2.7559 in Overall Length, Rectangular Shank, 1/2 in H x 1/2 in W Shank, F Insert Seat, Left Hand Cutting, 1/2 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® QD, Insert Compatibility: QD-NF-0250-0002-CM, QS-QD-LFF0500C08S, 2.7559 in Overall Length, Rectangular Shank, 1/2 in H x 1/2 in W Shank, F Insert Seat, Left Hand Cutting, 1/2 in Maximum Depth of Cut, Steel
Alternate Catalog Number QS-QD-LFF0500C08S Catalog Number 6921707 Country of Origin SE Gross Weight Per Pack 2.2000 lb Head Length 0.984 in Internal or External External Item Group 480 Material Steel Series CoroCut® QD QS Toolholder Style QS-QD-R/LF..C..S Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Insert Compatibility QD-NF-0250-0002-CM Insert Seat Size F Maximum Depth of Cut 1/2 in Overall Length 2.756 in Shank Size 1/2 in H x 1/2 in W Shank Type Rectangular 0 deg body workpiece side 10 life cycle state Axial concentric coolant entry 80 bar coolant 25.4 mm maximum workpiece parting diameter Axial concentric coolant exit 90 deg cutting edge 25 mm minimum overhang 0 deg inclination 0 deg rake ANSI Code: QS-QD-LFF0500C08S ISO Code: QS-QD-LFF0500C08S
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-QD-LFF0500C08S |
| Catalog Number | 6921707 |
| Country of Origin | SE |
| Gross Weight Per Pack | 2.2000 lb |
| Head Length | 0.984 in |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® QD QS |
| Toolholder Style | QS-QD-R/LF..C..S |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Insert Compatibility | QD-NF-0250-0002-CM |
| Insert Seat Size | F |
| Maximum Depth of Cut | 1/2 in |
| Overall Length | 2.756 in |
| Shank Size | 1/2 in H x 1/2 in W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 10 life cycle state |
| Axial concentric coolant entry |
| 80 bar coolant |
| 25.4 mm maximum workpiece parting diameter |
| Axial concentric coolant exit |
| 90 deg cutting edge |
| 25 mm minimum overhang |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QS-QD-LFF0500C08S |
| ISO Code: QS-QD-LFF0500C08S |
