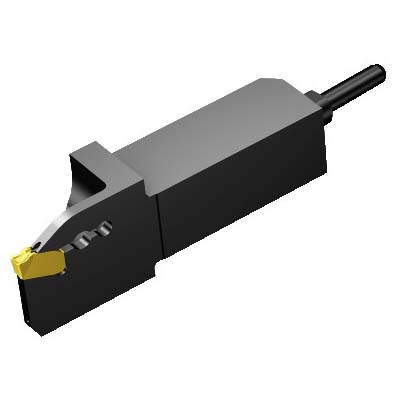

Sandvik Coromant 6921706 CoroCut® QD Indexable Shank Tool, QD-NF-0250-0002-CM insert, F Insert Seat, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6921706 CoroCut® QD Indexable Shank Tool, QD-NF-0250-0002-CM insert, F Insert Seat, Right Hand
SKU1243928
MFGR #6921706
$/ea
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® QD, Insert Compatibility: QD-NF-0250-0002-CM, QS-QD-RFF16C1616S, 2.7559 in Overall Length, Rectangular Shank, 0.6299 in H x 0.6299 in W Shank, F Insert Seat, Right Hand Cutting, 0.6299 in Maximum Depth of Cut, Steel
Sandvik Coromant Shank Tool, Indexable, Series: CoroCut® QD, Insert Compatibility: QD-NF-0250-0002-CM, QS-QD-RFF16C1616S, 2.7559 in Overall Length, Rectangular Shank, 0.6299 in H x 0.6299 in W Shank, F Insert Seat, Right Hand Cutting, 0.6299 in Maximum Depth of Cut, Steel
Alternate Catalog Number QS-QD-RFF16C1616S Catalog Number 6921706 Country of Origin SE Gross Weight Per Pack 0.3300 lb Head Length 25 mm Internal or External External Item Group 480 Material Steel Series CoroCut® QD QS Toolholder Style QS-QD-R/LF..C..S Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility QD-NF-0250-0002-CM Insert Seat Size F Maximum Depth of Cut 16 mm Overall Length 70 mm Shank Size 16 mm H x 16 mm W Shank Type Rectangular 0 deg body workpiece side 10 life cycle state Axial concentric coolant entry 80 bar coolant 32 mm maximum workpiece parting diameter Axial concentric coolant exit 90 deg cutting edge 25 mm minimum overhang 0 deg inclination 0 deg rake ANSI Code: QS-QD-RFF16C1616S ISO Code: QS-QD-RFF16C1616S
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-QD-RFF16C1616S |
| Catalog Number | 6921706 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.3300 lb |
| Head Length | 25 mm |
| Internal or External | External |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® QD QS |
| Toolholder Style | QS-QD-R/LF..C..S |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | QD-NF-0250-0002-CM |
| Insert Seat Size | F |
| Maximum Depth of Cut | 16 mm |
| Overall Length | 70 mm |
| Shank Size | 16 mm H x 16 mm W |
| Shank Type | Rectangular |
| 0 deg body workpiece side |
| 10 life cycle state |
| Axial concentric coolant entry |
| 80 bar coolant |
| 32 mm maximum workpiece parting diameter |
| Axial concentric coolant exit |
| 90 deg cutting edge |
| 25 mm minimum overhang |
| 0 deg inclination |
| 0 deg rake |
| ANSI Code: QS-QD-RFF16C1616S |
| ISO Code: QS-QD-RFF16C1616S |
