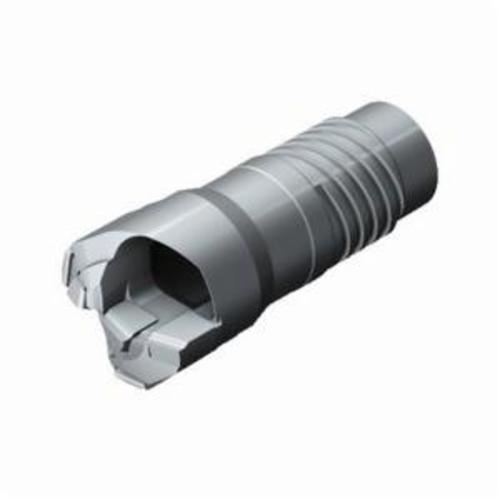

Sandvik Coromant 6916097 CoroDrill® 808 Right Hand STS With Internal Chip Evacuation, 1.4173 in, 1.7716 in Dia Max Drill
Custom_Product_Images_Illustration
Sandvik Coromant 6916097 CoroDrill® 808 Right Hand STS With Internal Chip Evacuation, 1.4173 in, 1.7716 in Dia Max Drill
SKU1252145
MFGR #6916097
$/ea
CoroDrill® 808 is a deep hole machining concept designed especially for the STS and Ejector systems. Among many great features, this product is equipped with optimized pad design for good hole finish, unique edge preparation for increased chip breaking, and a reinforced periphery insert corner for added security and reliability.
CoroDrill® 808 is a deep hole machining concept designed especially for the STS and Ejector systems. Among many great features, this product is equipped with optimized pad design for good hole finish, unique edge preparation for increased chip breaking, and a reinforced periphery insert corner for added security and reliability.
Catalog Number 6916097 Country of Origin IN Gross Weight Per Pack 0.5400 lb Number of Non~Pilot Inserts Right Hand STS Series CoroDrill® 808 Type Right Hand STS Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Back of Head Diameter CoroDrill® 808 Head Connection Size 1.4173 in Head Length 1.311 in Maximum Drill Diameter 1.7716 in Overall Length 2.9527 in Pilot Drill Diameter 75 mm Pilot Drill Style 75 mm Pilot Type 45 mm SZ 10 STS head machine side compatibility Axial concentric coolant entry Axial concentric coolant exit M22 grade 69.3 mm L functional 69.3 mm overhang 6.29 mm L point 2000 r/min Carbide material H9 achievable hole tolerance M, P material classification 808-..D tool style Meets tolerance demands of it 9 Long and predictable tool life guarantees high process security High toughness and excellent wear resistance thanks to TiAlN-coated grade Insert geometry optimized for excellent chip breaking No pre-setting, no need for tool-room service Finish ground in 0.01 mm increments Robust design enables high feed rates Sintered insert geometries ensure consistent, trouble-free chip control in most materials
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | 6916097 |
| Country of Origin | IN |
| Gross Weight Per Pack | 0.5400 lb |
| Number of Non~Pilot Inserts | Right Hand STS |
| Series | CoroDrill® 808 |
| Type | Right Hand STS |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Back of Head Diameter | CoroDrill® 808 |
| Head Connection Size | 1.4173 in |
| Head Length | 1.311 in |
| Maximum Drill Diameter | 1.7716 in |
| Overall Length | 2.9527 in |
| Pilot Drill Diameter | 75 mm |
| Pilot Drill Style | 75 mm |
| Pilot Type | 45 mm |
| SZ 10 STS head machine side compatibility |
| Axial concentric coolant entry |
| Axial concentric coolant exit |
| M22 grade |
| 69.3 mm L functional |
| 69.3 mm overhang |
| 6.29 mm L point |
| 2000 r/min |
| Carbide material |
| H9 achievable hole tolerance |
| M, P material classification |
| 808-..D tool style |
| Meets tolerance demands of it 9 |
| Long and predictable tool life guarantees high process security |
| High toughness and excellent wear resistance thanks to TiAlN-coated grade |
| Insert geometry optimized for excellent chip breaking |
| No pre-setting, no need for tool-room service |
| Finish ground in 0.01 mm increments |
| Robust design enables high feed rates |
| Sintered insert geometries ensure consistent, trouble-free chip control in most materials |
