Sandvik Coromant

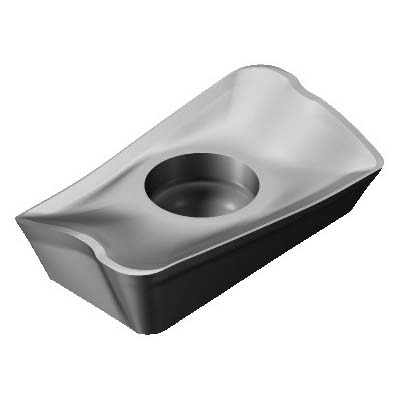

Sandvik Coromant 6906946 CoroMill® 390 Milling Insert, R390-11 T3 16E-PM 1130, R390..E-PM Insert, Carbide, 1130, R390-11 T3 16E-PM 1130
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6906946 CoroMill® 390 Milling Insert, R390-11 T3 16E-PM 1130, R390..E-PM Insert, Carbide, 1130, R390-11 T3 16E-PM 1130
SKU1120750
MFGR #6906946
$/ea
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..E-PM Insert, 0.1413 in Thickness, 0.268 in Width, 0.4507 in Length, PM Chipbreaker, 0.063 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 1130, ANSI Code: R390-11 T3 16E-PM 1130, ISO Code: R390-11 T3 16E-PM 1130, Right Hand, Carbide, PVD Coated, Material Grade: H/M/N/P/S
Sandvik Coromant Milling Insert, Series: CoroMill® 390, R390..E-PM Insert, 0.1413 in Thickness, 0.268 in Width, 0.4507 in Length, PM Chipbreaker, 0.063 in Corner Radius, 0.1102 in Hole Dia, Manufacturer's Grade: 1130, ANSI Code: R390-11 T3 16E-PM 1130, ISO Code: R390-11 T3 16E-PM 1130, Right Hand, Carbide, PVD Coated, Material Grade: H/M/N/P/S
Alternate Catalog Number R390-11 T3 16E-PM 1130 ANSI Code R390-11 T3 16E-PM 1130 Catalog Number 6906946 Corner Radius 0.063 in Country of Origin SE Finish PVD-AlTiCrN Coated Gross Weight Per Pack 7.3000 lb Hand of Insert Right Hole Diameter 0.1102 in ISO Code R390-11 T3 16E-PM 1130 Item Group 350 Lead Angle 90 ° Length 0.4507 in Material Application Hardened Steel, Stainless Steel, Non-Ferrous Metals, Steel and Titanium Alloy Series CoroMill® 390 Thickness 0.141 in Width 0.268 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Inscribed Circle 0.268 in Insert Size 11T316 Insert Style R390..E-PM Manufacturer's Grade 1130 Material Carbide Material Grade H, M, N, P, S Rake Positive Shape Rectangle 40 - 60 deg countersunk hole and non-flat surface clamping interface 21 deg clearance 10 mm D cutting 0.4 mm L wiper edge 90 deg major cutting edge 10 mm L effective cutting edge 1-side cutting 20 life cycle state 2 corner E cutting edge condition 2 cutting edge 0.08 - 0.2 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R390-11 T3 16E-PM 1130 |
| ANSI Code | R390-11 T3 16E-PM 1130 |
| Catalog Number | 6906946 |
| Corner Radius | 0.063 in |
| Country of Origin | SE |
| Finish | PVD-AlTiCrN Coated |
| Gross Weight Per Pack | 7.3000 lb |
| Hand of Insert | Right |
| Hole Diameter | 0.1102 in |
| ISO Code | R390-11 T3 16E-PM 1130 |
| Item Group | 350 |
| Lead Angle | 90 ° |
| Length | 0.4507 in |
| Material Application | Hardened Steel, Stainless Steel, Non-Ferrous Metals, Steel and Titanium Alloy |
| Series | CoroMill® 390 |
| Thickness | 0.141 in |
| Width | 0.268 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Inscribed Circle | 0.268 in |
| Insert Size | 11T316 |
| Insert Style | R390..E-PM |
| Manufacturer's Grade | 1130 |
| Material | Carbide |
| Material Grade | H, M, N, P, S |
| Rake | Positive |
| Shape | Rectangle |
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 21 deg clearance |
| 10 mm D cutting |
| 0.4 mm L wiper edge |
| 90 deg major cutting edge |
| 10 mm L effective cutting edge |
| 1-side cutting |
| 20 life cycle state |
| 2 corner |
| E cutting edge condition |
| 2 cutting edge |
| 0.08 - 0.2 mm/r cutting feed |
