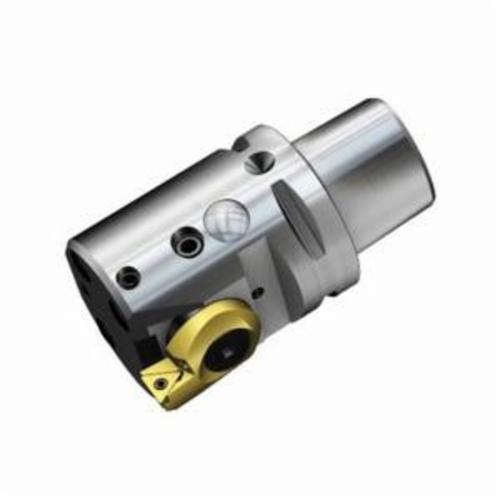

Sandvik Coromant 6873053 CoroBore® 826, C6, 3.2815 to 3.3326 in Bore, Right Hand, TCMT Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6873053 CoroBore® 826, C6, 3.2815 to 3.3326 in Bore, Right Hand, TCMT Insert
SKU1252163
MFGR #6873053
$/ea
Sandvik Coromant Fine Boring Tool, Series: CoroBore® 826, System Size: C6, 3.2815 to 3.3326 in Bore Dia, 2.4803 in Head Dia, 3.0708 in Head Length/Projection, Right Hand Cutting, TCMT Insert, Insert Compatibility: TCMT 11 03 04, Steel
Sandvik Coromant Fine Boring Tool, Series: CoroBore® 826, System Size: C6, 3.2815 to 3.3326 in Bore Dia, 2.4803 in Head Dia, 3.0708 in Head Length/Projection, Right Hand Cutting, TCMT Insert, Insert Compatibility: TCMT 11 03 04, Steel
Alternate Catalog Number 826-84TC11-C6HP Bore Diameter 3.2815 to 3.3326 in Catalog Number 6873053 Center to Cutting Edge 5757836 Key, 6873074 Adaptor and 6873087 Cartridge Country of Origin TH Finish C6 Gross Weight Per Pack 4.2700 lb Head Diameter 2.4803 in Item Group 530 Series CoroBore® 826 Type CoroBore® 826 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Head Length|Projection 3.0708 in Insert Compatibility TCMT 11 03 04 Insert Style TCMT Material Steel System Size C6 Bolt and segment clamping machine side adaptive interface 0.0001 mm adjustment increment 0.65 mm adjustment limit 0 deg body half taper 1 cutting item Axial concentric and radial coolant entry 70 bar coolant Axial inclined coolant exit 63 mm Dia connection EFW cutting feed 0 deg orthogonal rake 92 deg cutting edge 0 deg inclination 116 mm OAL T to Triangle insert 0.9 Nm torque 826..TC-CxHP tool style 20 life cycle state ANSI Code: 826-84TC11-C6HP ISO Code: 826-84TC11-C6HP
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 826-84TC11-C6HP |
| Bore Diameter | 3.2815 to 3.3326 in |
| Catalog Number | 6873053 |
| Center to Cutting Edge | 5757836 Key, 6873074 Adaptor and 6873087 Cartridge |
| Country of Origin | TH |
| Finish | C6 |
| Gross Weight Per Pack | 4.2700 lb |
| Head Diameter | 2.4803 in |
| Item Group | 530 |
| Series | CoroBore® 826 |
| Type | CoroBore® 826 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Head Length|Projection | 3.0708 in |
| Insert Compatibility | TCMT 11 03 04 |
| Insert Style | TCMT |
| Material | Steel |
| System Size | C6 |
| Bolt and segment clamping machine side adaptive interface |
| 0.0001 mm adjustment increment |
| 0.65 mm adjustment limit |
| 0 deg body half taper |
| 1 cutting item |
| Axial concentric and radial coolant entry |
| 70 bar coolant |
| Axial inclined coolant exit |
| 63 mm Dia connection |
| EFW cutting feed |
| 0 deg orthogonal rake |
| 92 deg cutting edge |
| 0 deg inclination |
| 116 mm OAL |
| T to Triangle insert |
| 0.9 Nm torque |
| 826..TC-CxHP tool style |
| 20 life cycle state |
| ANSI Code: 826-84TC11-C6HP |
| ISO Code: 826-84TC11-C6HP |
