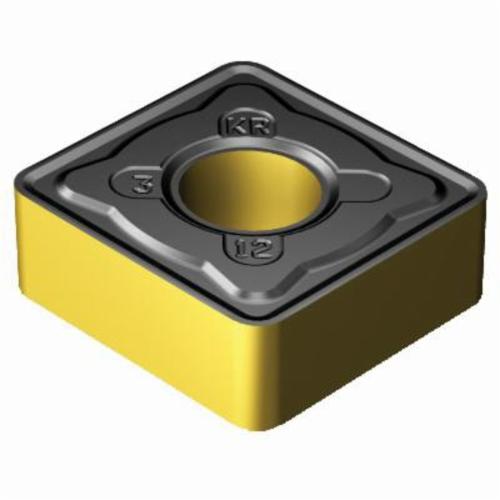

Sandvik Coromant 6868567 T-Max® P Negative Basic Shape Turning Insert, SNMG 644-KR 3225, S-Square, SNMG Insert, 3225
Custom_Product_Images_Illustration
Sandvik Coromant 6868567 T-Max® P Negative Basic Shape Turning Insert, SNMG 644-KR 3225, S-Square, SNMG Insert, 3225
SKU1243680
MFGR #6868567
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 12.3 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, KR Chipbreaker, 0.0624 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 3225, ANSI Code: SNMG 644-KR 3225, ISO Code: SNMG 19 06 16-KR 3225, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 12.3 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, KR Chipbreaker, 0.0624 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 3225, ANSI Code: SNMG 644-KR 3225, ISO Code: SNMG 19 06 16-KR 3225, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number SNMG 644-KR 3225 ANSI Code SNMG 644-KR 3225 Catalog Number 6868567 Corner Radius 0.0624 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.7100 lb Hole Diameter 0.312 in Included Angle 90 ° ISO Code SNMG 19 06 16-KR 3225 Item Group 110 Length 3/4 in Relief Angle 0 ° Series T-Max® P Thickness 1/4 in Width 3/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KR Cutting Direction Neutral For Use On Cast Iron Inscribed Circle 3/4 in Insert Size 644 Insert Style SNMG Manufacturer's Grade 3225 Material Carbide Material Grade K Maximum Depth of Cut 12.3 mm Rake Negative Seat Size 19 Shape Square Longer tool life - excellent wear and fracture resistance Prevents layer peeling - strong intra coating adhesion Higher adhesion between each layer with improved crystal structure Control chipping - higher layer strength PP chipbreaker - 3-step smart dot structure is applicable to a wide range of feed rates in steel finishing Smooth taper cutting edge reduces cutting forces CA510 grade special substrate with thermal deformation resistance along with a thick and tough film coating for wear resistance High speed and high efficiency steel machining
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SNMG 644-KR 3225 |
| ANSI Code | SNMG 644-KR 3225 |
| Catalog Number | 6868567 |
| Corner Radius | 0.0624 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.7100 lb |
| Hole Diameter | 0.312 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 19 06 16-KR 3225 |
| Item Group | 110 |
| Length | 3/4 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Width | 3/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KR |
| Cutting Direction | Neutral |
| For Use On | Cast Iron |
| Inscribed Circle | 3/4 in |
| Insert Size | 644 |
| Insert Style | SNMG |
| Manufacturer's Grade | 3225 |
| Material | Carbide |
| Material Grade | K |
| Maximum Depth of Cut | 12.3 mm |
| Rake | Negative |
| Seat Size | 19 |
| Shape | Square |
| Longer tool life - excellent wear and fracture resistance |
| Prevents layer peeling - strong intra coating adhesion |
| Higher adhesion between each layer with improved crystal structure |
| Control chipping - higher layer strength |
| PP chipbreaker - 3-step smart dot structure is applicable to a wide range of feed rates in steel finishing |
| Smooth taper cutting edge reduces cutting forces |
| CA510 grade special substrate with thermal deformation resistance along with a thick and tough film coating for wear resistance |
| High speed and high efficiency steel machining |
