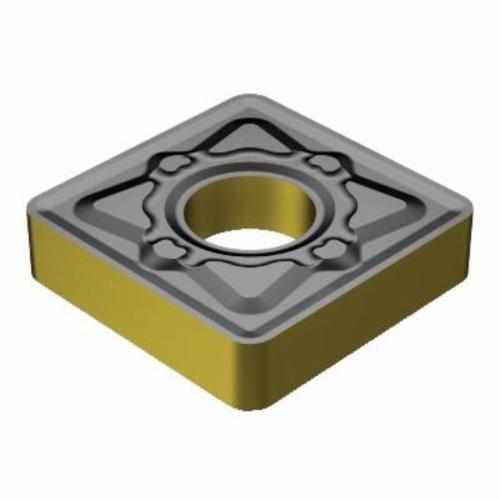

Sandvik Coromant 6868530 T-Max® P Negative Basic Shape Turning Insert, SNMG 322-KM 3225, S-Square, SNMG Insert, 3225
Custom_Product_Images_Illustration
Sandvik Coromant 6868530 T-Max® P Negative Basic Shape Turning Insert, SNMG 322-KM 3225, S-Square, SNMG Insert, 3225
SKU1243685
MFGR #6868530
Your Cost: $11.40/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 4.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 3/8 in Length, KM Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 3225, ANSI Code: SNMG 322-KM 3225, ISO Code: SNMG 09 03 08-KM 3225, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 4.5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 1/8 in Thickness, 3/8 in Length, KM Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 3225, ANSI Code: SNMG 322-KM 3225, ISO Code: SNMG 09 03 08-KM 3225, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number SNMG 322-KM 3225 ANSI Code SNMG 322-KM 3225 Catalog Number 6868530 Corner Radius 0.0312 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.1000 lb Hole Diameter 0.15 in Included Angle 90 ° ISO Code SNMG 09 03 08-KM 3225 Item Group 110 Length 3/8 in Relief Angle 0 ° Series T-Max® P Thickness 1/8 in Width 3/8 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KM Cutting Direction Neutral For Use On Cast Iron Inscribed Circle 3/8 in Insert Size 322 Insert Style SNMG Manufacturer's Grade 3225 Material Carbide Material Grade K Maximum Depth of Cut 4.5 mm Rake Negative Seat Size 09 Shape Square Longer tool life - excellent wear and fracture resistance Prevents layer peeling - strong intra coating adhesion Higher adhesion between each layer with improved crystal structure Control chipping - higher layer strength PP chipbreaker - 3-step smart dot structure is applicable to a wide range of feed rates in steel finishing Smooth taper cutting edge reduces cutting forces CA515 grade special substrate and tough coating film provides thermal deformation and high wear resistance Continuous to light interrupted steel machining (general use)
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SNMG 322-KM 3225 |
| ANSI Code | SNMG 322-KM 3225 |
| Catalog Number | 6868530 |
| Corner Radius | 0.0312 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.1000 lb |
| Hole Diameter | 0.15 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 09 03 08-KM 3225 |
| Item Group | 110 |
| Length | 3/8 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/8 in |
| Width | 3/8 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KM |
| Cutting Direction | Neutral |
| For Use On | Cast Iron |
| Inscribed Circle | 3/8 in |
| Insert Size | 322 |
| Insert Style | SNMG |
| Manufacturer's Grade | 3225 |
| Material | Carbide |
| Material Grade | K |
| Maximum Depth of Cut | 4.5 mm |
| Rake | Negative |
| Seat Size | 09 |
| Shape | Square |
| Longer tool life - excellent wear and fracture resistance |
| Prevents layer peeling - strong intra coating adhesion |
| Higher adhesion between each layer with improved crystal structure |
| Control chipping - higher layer strength |
| PP chipbreaker - 3-step smart dot structure is applicable to a wide range of feed rates in steel finishing |
| Smooth taper cutting edge reduces cutting forces |
| CA515 grade special substrate and tough coating film provides thermal deformation and high wear resistance |
| Continuous to light interrupted steel machining (general use) |
