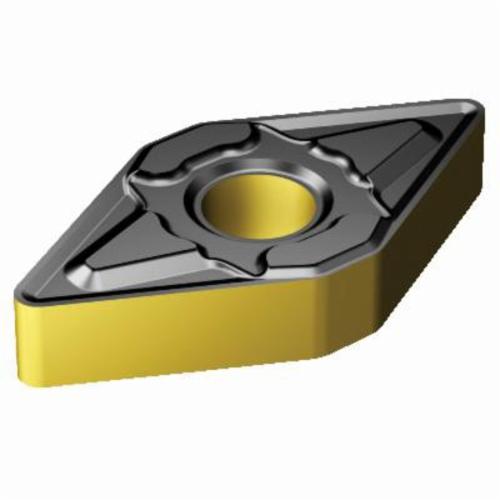

Sandvik Coromant 6868528 T-Max® P Negative Basic Shape Turning Insert, DNMG 442-KM 3225, D-55 deg Diamond, DNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6868528 T-Max® P Negative Basic Shape Turning Insert, DNMG 442-KM 3225, D-55 deg Diamond, DNMG Insert
SKU1254656
MFGR #6868528
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 0.6103 in Length, KM Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 3225, ANSI Code: DNMG 442-KM 3225, ISO Code: DNMG 15 06 08-KM 3225, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 0.6103 in Length, KM Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 3225, ANSI Code: DNMG 442-KM 3225, ISO Code: DNMG 15 06 08-KM 3225, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number DNMG 442-KM 3225 ANSI Code DNMG 442-KM 3225 Catalog Number 6868528 Corner Radius 0.0312 in Country of Origin IN Finish MTCVD Coated Gross Weight Per Pack 0.0400 lb Hand of Insert Neutral Hole Diameter 0.2029 in Included Angle 55 deg ISO Code DNMG 15 06 08-KM 3225 Item Group 110 Length 0.6103 in Relief Angle 0 deg Series T-Max® P Thickness 1/4 in Type Negative Basic Shape Width KM Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KM Inscribed Circle 1/2 in Insert Size D - 55 deg Diamond Insert Style DNMG Manufacturer's Grade 3225 Material Carbide Material Grade K Maximum Depth of Cut 5 mm Shape D-55 deg Diamond Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.15 - 0.5 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DNMG 442-KM 3225 |
| ANSI Code | DNMG 442-KM 3225 |
| Catalog Number | 6868528 |
| Corner Radius | 0.0312 in |
| Country of Origin | IN |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0400 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 deg |
| ISO Code | DNMG 15 06 08-KM 3225 |
| Item Group | 110 |
| Length | 0.6103 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Type | Negative Basic Shape |
| Width | KM |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KM |
| Inscribed Circle | 1/2 in |
| Insert Size | D - 55 deg Diamond |
| Insert Style | DNMG |
| Manufacturer's Grade | 3225 |
| Material | Carbide |
| Material Grade | K |
| Maximum Depth of Cut | 5 mm |
| Shape | D-55 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.15 - 0.5 mm/r cutting feed |
| 20 life cycle state |
