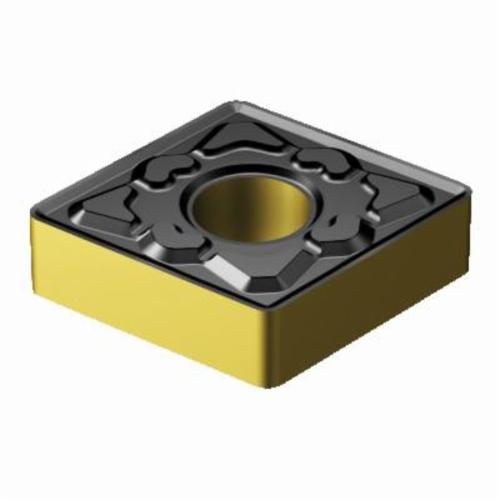

Sandvik Coromant 6868519 T-Max® P Negative Basic Shape Turning Insert, CNMG 542-KM 3225, C-80 deg Diamond, CNMG Insert, 3225
Custom_Product_Images_Illustration
Sandvik Coromant 6868519 T-Max® P Negative Basic Shape Turning Insert, CNMG 542-KM 3225, C-80 deg Diamond, CNMG Insert, 3225
SKU1238043
MFGR #6868519
Your Cost: $27.56/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 8 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.6346 in Length, KM Chipbreaker, 0.0312 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 3225, ANSI Code: CNMG 542-KM 3225, ISO Code: CNMG 16 06 08-KM 3225, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 8 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.6346 in Length, KM Chipbreaker, 0.0312 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 3225, ANSI Code: CNMG 542-KM 3225, ISO Code: CNMG 16 06 08-KM 3225, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number CNMG 542-KM 3225 ANSI Code CNMG 542-KM 3225 Catalog Number 6868519 Corner Radius 0.031 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.5000 lb Hole Diameter 1/4 in Included Angle 80 ° ISO Code CNMG 16 06 08-KM 3225 Item Group 110 Relief Angle 0 ° Series T-Max® P Thickness 1/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KM Cutting Direction Neutral For Use On Cast Iron Inscribed Circle 5/8 in Insert Size 542 Insert Style CNMG Manufacturer's Grade 3225 Material Carbide Material Grade K Maximum Depth of Cut 0.315 in Rake Negative Seat Size 16 Shape Rhombic Minimizes notching Prevents burrs Reduces edge build-up Prevents fracture by thin film coating Prevents chattering and cutting edge damage at steel machining HQ chipbreaker - general purpose chipbreaker for medium machining CA6525 grade specialized carbide substrate for stainless steel cutting, excellent notching resistance and toughness First choice for general cutting of stainless steel, from finishing to roughing and continuous to interruption
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 542-KM 3225 |
| ANSI Code | CNMG 542-KM 3225 |
| Catalog Number | 6868519 |
| Corner Radius | 0.031 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.5000 lb |
| Hole Diameter | 1/4 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 16 06 08-KM 3225 |
| Item Group | 110 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KM |
| Cutting Direction | Neutral |
| For Use On | Cast Iron |
| Inscribed Circle | 5/8 in |
| Insert Size | 542 |
| Insert Style | CNMG |
| Manufacturer's Grade | 3225 |
| Material | Carbide |
| Material Grade | K |
| Maximum Depth of Cut | 0.315 in |
| Rake | Negative |
| Seat Size | 16 |
| Shape | Rhombic |
| Minimizes notching |
| Prevents burrs |
| Reduces edge build-up |
| Prevents fracture by thin film coating |
| Prevents chattering and cutting edge damage at steel machining |
| HQ chipbreaker - general purpose chipbreaker for medium machining |
| CA6525 grade specialized carbide substrate for stainless steel cutting, excellent notching resistance and toughness |
| First choice for general cutting of stainless steel, from finishing to roughing and continuous to interruption |
