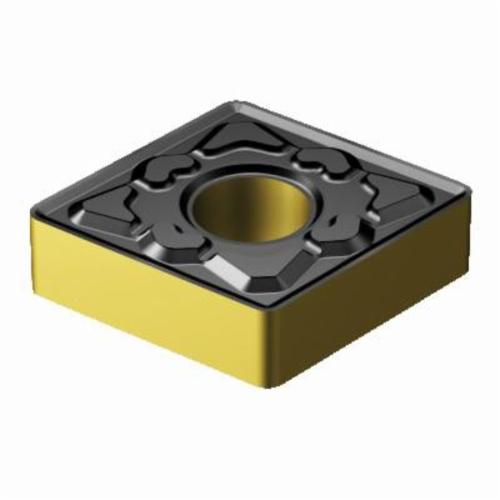

Sandvik Coromant 6868518 T-Max® P Negative Basic Shape Turning Insert, CNMG 434-KM 3225, C-80 deg Diamond, CNMG Insert, 3225
Custom_Product_Images_Illustration
Sandvik Coromant 6868518 T-Max® P Negative Basic Shape Turning Insert, CNMG 434-KM 3225, C-80 deg Diamond, CNMG Insert, 3225
SKU1238072
MFGR #6868518
Your Cost: $17.44/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, KM Chipbreaker, 0.0624 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 3225, ANSI Code: CNMG 434-KM 3225, ISO Code: CNMG 12 04 16-KM 3225, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, KM Chipbreaker, 0.0624 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 3225, ANSI Code: CNMG 434-KM 3225, ISO Code: CNMG 12 04 16-KM 3225, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number CNMG 434-KM 3225 ANSI Code CNMG 434-KM 3225 Catalog Number 6868518 Corner Radius 0.062 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2400 lb Hole Diameter 0.203 in Included Angle 80 ° ISO Code CNMG 12 04 16-KM 3225 Item Group 110 Relief Angle 0 ° Series T-Max® P Thickness 0.187 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KM Cutting Direction Neutral For Use On Cast Iron Inscribed Circle 1/2 in Insert Size 434 Insert Style CNMG Manufacturer's Grade 3225 Material Carbide Material Grade K Maximum Depth of Cut 0.236 in Rake Negative Seat Size 12 Shape Rhombic Minimizes notching Prevents burrs Reduces edge build-up Prevents fracture by thin film coating Prevents chattering and cutting edge damage at steel machining HQ chipbreaker - general purpose chipbreaker for medium machining CA6515 grade specialized carbide substrate for stainless steel cutting and excellent wear resistance Continuous to light interrupted cutting of stainless steel
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 434-KM 3225 |
| ANSI Code | CNMG 434-KM 3225 |
| Catalog Number | 6868518 |
| Corner Radius | 0.062 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2400 lb |
| Hole Diameter | 0.203 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 12 04 16-KM 3225 |
| Item Group | 110 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.187 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KM |
| Cutting Direction | Neutral |
| For Use On | Cast Iron |
| Inscribed Circle | 1/2 in |
| Insert Size | 434 |
| Insert Style | CNMG |
| Manufacturer's Grade | 3225 |
| Material | Carbide |
| Material Grade | K |
| Maximum Depth of Cut | 0.236 in |
| Rake | Negative |
| Seat Size | 12 |
| Shape | Rhombic |
| Minimizes notching |
| Prevents burrs |
| Reduces edge build-up |
| Prevents fracture by thin film coating |
| Prevents chattering and cutting edge damage at steel machining |
| HQ chipbreaker - general purpose chipbreaker for medium machining |
| CA6515 grade specialized carbide substrate for stainless steel cutting and excellent wear resistance |
| Continuous to light interrupted cutting of stainless steel |
