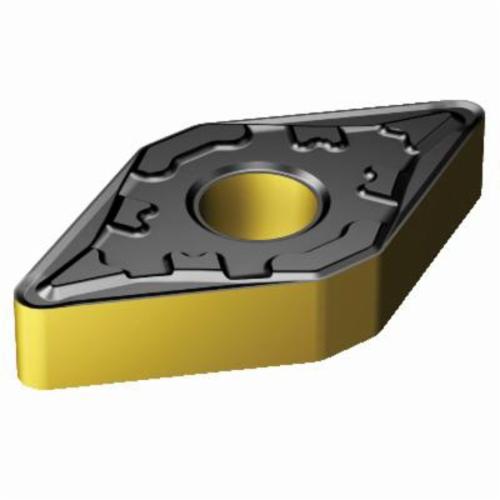

Sandvik Coromant 6868507 T-Max® P Negative Basic Shape Turning Insert, DNMG 441-KF 3210, D-55 deg Diamond, DNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6868507 T-Max® P Negative Basic Shape Turning Insert, DNMG 441-KF 3210, D-55 deg Diamond, DNMG Insert
SKU1254616
MFGR #6868507
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 2 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 0.6103 in Length, KF Chipbreaker, 0.0156 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 3210, ANSI Code: DNMG 441-KF 3210, ISO Code: DNMG 15 06 04-KF 3210, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 2 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 1/4 in Thickness, 0.6103 in Length, KF Chipbreaker, 0.0156 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 3210, ANSI Code: DNMG 441-KF 3210, ISO Code: DNMG 15 06 04-KF 3210, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number DNMG 441-KF 3210 ANSI Code DNMG 441-KF 3210 Catalog Number 6868507 Corner Radius 0.0156 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0300 lb Hand of Insert Neutral Hole Diameter 0.2029 in Included Angle 55 deg ISO Code DNMG 15 06 04-KF 3210 Item Group 110 Length 0.6103 in Relief Angle 0 deg Series T-Max® P Thickness 1/4 in Type Negative Basic Shape Width K Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KF Inscribed Circle 1/2 in Insert Size 55 deg Insert Style DNMG Manufacturer's Grade 3210 Material Carbide Material Grade K Maximum Depth of Cut 2 mm Shape D-55 deg Diamond Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.08 - 0.25 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DNMG 441-KF 3210 |
| ANSI Code | DNMG 441-KF 3210 |
| Catalog Number | 6868507 |
| Corner Radius | 0.0156 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0300 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 deg |
| ISO Code | DNMG 15 06 04-KF 3210 |
| Item Group | 110 |
| Length | 0.6103 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Type | Negative Basic Shape |
| Width | K |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KF |
| Inscribed Circle | 1/2 in |
| Insert Size | 55 deg |
| Insert Style | DNMG |
| Manufacturer's Grade | 3210 |
| Material | Carbide |
| Material Grade | K |
| Maximum Depth of Cut | 2 mm |
| Shape | D-55 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.08 - 0.25 mm/r cutting feed |
| 20 life cycle state |
