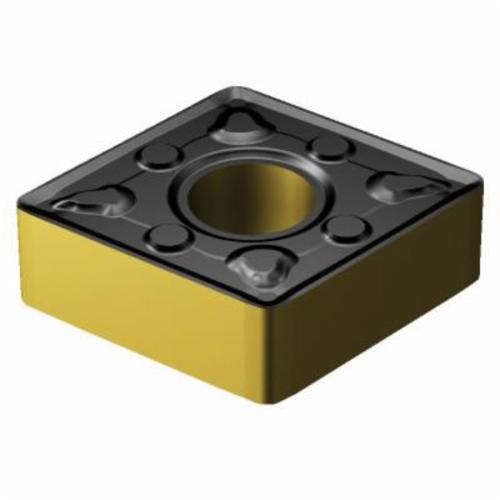

Sandvik Coromant 6868461 T-Max® P Negative Basic Shape Turning Insert, CNMG 433-WMX 3225, C-80 deg Diamond, CNMG Insert, 3225
Custom_Product_Images_Illustration
Sandvik Coromant 6868461 T-Max® P Negative Basic Shape Turning Insert, CNMG 433-WMX 3225, C-80 deg Diamond, CNMG Insert, 3225
SKU1238010
MFGR #6868461
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, WMX Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 3225, ANSI Code: CNMG 433-WMX 3225, ISO Code: CNMG 12 04 12-WMX 3225, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, WMX Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 3225, ANSI Code: CNMG 433-WMX 3225, ISO Code: CNMG 12 04 12-WMX 3225, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number CNMG 433-WMX 3225 ANSI Code CNMG 433-WMX 3225 Catalog Number 6868461 Corner Radius 0.047 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2300 lb Hole Diameter 0.203 in Included Angle 80 ° ISO Code CNMG 12 04 12-WMX 3225 Item Group 110 Relief Angle 0 ° Series T-Max® P Thickness 0.187 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker WMX Cutting Direction Neutral For Use On Cast Iron Inscribed Circle 1/2 in Insert Size 433 Insert Style CNMG Manufacturer's Grade 3225 Material Carbide Material Grade K Maximum Depth of Cut 0.236 in Rake Negative Seat Size 12 Shape Rhombic Longer tool life - excellent wear and fracture resistance Prevents layer peeling - strong intra coating adhesion Higher adhesion between each layer with improved crystal structure Control chipping - higher layer strength WP chipbreaker - dual dot structure with one dot offering stabilized chip control at low feed rates, while a second dot controls chips at higher feed rates CA530 grade special tough substrate and tough coating film provides high stability and wear resistance General to heavy interrupted machining (stability oriented) Wiper technology for high feed machining Improved machining economy Excellent surface finish Eliminate expensive grinding operations Undisturbed production Less need for supervision 0.2 - 0.75 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 433-WMX 3225 |
| ANSI Code | CNMG 433-WMX 3225 |
| Catalog Number | 6868461 |
| Corner Radius | 0.047 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2300 lb |
| Hole Diameter | 0.203 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 12 04 12-WMX 3225 |
| Item Group | 110 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.187 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | WMX |
| Cutting Direction | Neutral |
| For Use On | Cast Iron |
| Inscribed Circle | 1/2 in |
| Insert Size | 433 |
| Insert Style | CNMG |
| Manufacturer's Grade | 3225 |
| Material | Carbide |
| Material Grade | K |
| Maximum Depth of Cut | 0.236 in |
| Rake | Negative |
| Seat Size | 12 |
| Shape | Rhombic |
| Longer tool life - excellent wear and fracture resistance |
| Prevents layer peeling - strong intra coating adhesion |
| Higher adhesion between each layer with improved crystal structure |
| Control chipping - higher layer strength |
| WP chipbreaker - dual dot structure with one dot offering stabilized chip control at low feed rates, while a second dot controls chips at higher feed rates |
| CA530 grade special tough substrate and tough coating film provides high stability and wear resistance |
| General to heavy interrupted machining (stability oriented) |
| Wiper technology for high feed machining |
| Improved machining economy |
| Excellent surface finish |
| Eliminate expensive grinding operations |
| Undisturbed production |
| Less need for supervision |
| 0.2 - 0.75 mm/r cutting feed |
