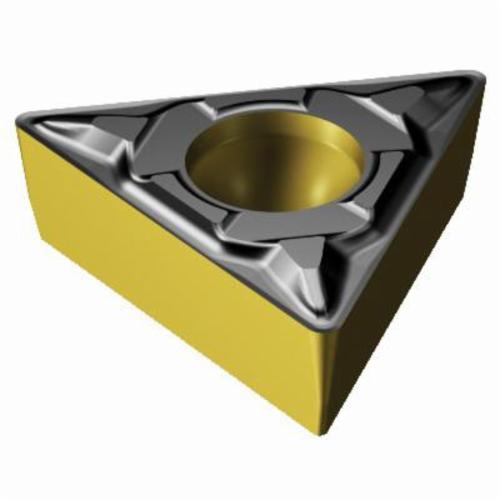

Sandvik Coromant 6868343 CoroTurn® 107 Basic Shape Positive Turning Insert, TCMT 1.2(1.2)0-KF 3210, T-Triangle, 3210
Custom_Product_Images_Illustration
Sandvik Coromant 6868343 CoroTurn® 107 Basic Shape Positive Turning Insert, TCMT 1.2(1.2)0-KF 3210, T-Triangle, 3210
SKU1244311
MFGR #6868343
$/ea
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, TCMT Insert, T-Triangle, 1.5 mm Maximum Depth of Cut, 0.1562 in Inscribed Circle, 0.0779 in Thickness, 0.2606 in Length, KF Chipbreaker, 0.0078 in Corner Radius, 0.0866 in Hole Dia, Manufacturer's Grade: 3210, ANSI Code: TCMT 1.2(1.2)0-KF 3210, ISO Code: TCMT 06 T1 02-KF 3210, 60 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, TCMT Insert, T-Triangle, 1.5 mm Maximum Depth of Cut, 0.1562 in Inscribed Circle, 0.0779 in Thickness, 0.2606 in Length, KF Chipbreaker, 0.0078 in Corner Radius, 0.0866 in Hole Dia, Manufacturer's Grade: 3210, ANSI Code: TCMT 1.2(1.2)0-KF 3210, ISO Code: TCMT 06 T1 02-KF 3210, 60 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number TCMT 1.2(1.2)0-KF 3210 ANSI Code TCMT 1.2(1.2)0-KF 3210 Catalog Number 6868343 Corner Radius 0.008 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 3.5500 lb Hole Diameter 0.0866 in Included Angle 60 ° ISO Code TCMT 06 T1 02-KF 3210 Item Group 120 Relief Angle 7 ° Series CoroTurn® 107 Thickness 0.078 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KF Cutting Direction Neutral For Use On Cast Iron Inscribed Circle 5/32 in Insert Size 1.2(1.2)0 Insert Style TCMT Manufacturer's Grade 3210 Material Carbide Material Grade K Maximum Depth of Cut 1.5 mm Rake Positive Seat Size 06 Shape Triangle U chipbreaker - good chip control at low feed rate and varied radial depth of cut with low cutting force Suitable for automatic lathes Low feed PR1225 grade superior wear and oxidation resistant MEGACOAT on micrograin carbide substrate Light interrupted to interrupted cutting of stainless steel For external machining of small, long, slender components and internal machining The positive insert shape combines low cutting forces with good edge strength The screw clamping ensures stability and unobstructed chip flow 0.05 - 0.11 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | TCMT 1.2(1.2)0-KF 3210 |
| ANSI Code | TCMT 1.2(1.2)0-KF 3210 |
| Catalog Number | 6868343 |
| Corner Radius | 0.008 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 3.5500 lb |
| Hole Diameter | 0.0866 in |
| Included Angle | 60 ° |
| ISO Code | TCMT 06 T1 02-KF 3210 |
| Item Group | 120 |
| Relief Angle | 7 ° |
| Series | CoroTurn® 107 |
| Thickness | 0.078 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KF |
| Cutting Direction | Neutral |
| For Use On | Cast Iron |
| Inscribed Circle | 5/32 in |
| Insert Size | 1.2(1.2)0 |
| Insert Style | TCMT |
| Manufacturer's Grade | 3210 |
| Material | Carbide |
| Material Grade | K |
| Maximum Depth of Cut | 1.5 mm |
| Rake | Positive |
| Seat Size | 06 |
| Shape | Triangle |
| U chipbreaker - good chip control at low feed rate and varied radial depth of cut with low cutting force |
| Suitable for automatic lathes |
| Low feed |
| PR1225 grade superior wear and oxidation resistant MEGACOAT on micrograin carbide substrate |
| Light interrupted to interrupted cutting of stainless steel |
| For external machining of small, long, slender components and internal machining |
| The positive insert shape combines low cutting forces with good edge strength |
| The screw clamping ensures stability and unobstructed chip flow |
| 0.05 - 0.11 mm/r cutting feed |
| 20 life cycle state |
