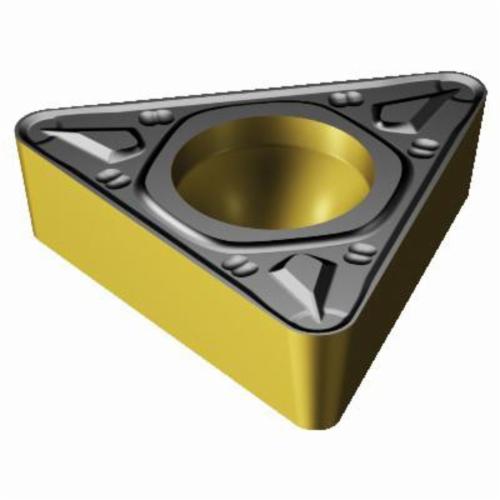

Sandvik Coromant 6868298 CoroTurn® 107 Basic Shape Positive Turning Insert, TCMT 3(2.5)2-KR 3225, T-Triangle, 3225
Custom_Product_Images_Illustration
Sandvik Coromant 6868298 CoroTurn® 107 Basic Shape Positive Turning Insert, TCMT 3(2.5)2-KR 3225, T-Triangle, 3225
SKU1244329
MFGR #6868298
$/ea
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, TCMT Insert, T-Triangle, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.6495 in Length, KR Chipbreaker, 0.0312 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 3225, ANSI Code: TCMT 3(2.5)2-KR 3225, ISO Code: TCMT 16 T3 08-KR 3225, 60 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, TCMT Insert, T-Triangle, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 0.6495 in Length, KR Chipbreaker, 0.0312 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 3225, ANSI Code: TCMT 3(2.5)2-KR 3225, ISO Code: TCMT 16 T3 08-KR 3225, 60 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K
Alternate Catalog Number TCMT 3(2.5)2-KR 3225 ANSI Code TCMT 3(2.5)2-KR 3225 Catalog Number 6868298 Corner Radius 0.031 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.1300 lb Hole Diameter 0.1732 in Included Angle 60 ° ISO Code TCMT 16 T3 08-KR 3225 Item Group 120 Relief Angle 7 ° Series CoroTurn® 107 Thickness 0.156 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker KR Cutting Direction Neutral For Use On Cast Iron Inscribed Circle 3/8 in Insert Size 3(2.5)2 Insert Style TCMT Manufacturer's Grade 3225 Material Carbide Material Grade K Maximum Depth of Cut 4 mm Rake Positive Seat Size 16 Shape Triangle PR930 grade hard TiCN base PVD coated super micrograin carbide Low cutting speed, precise cutting with sharp edge +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external machining of small, long, slender components and internal machining The positive insert shape combines low cutting forces with good edge strength The screw clamping ensures stability and unobstructed chip flow 0.12 - 0.35 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | TCMT 3(2.5)2-KR 3225 |
| ANSI Code | TCMT 3(2.5)2-KR 3225 |
| Catalog Number | 6868298 |
| Corner Radius | 0.031 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.1300 lb |
| Hole Diameter | 0.1732 in |
| Included Angle | 60 ° |
| ISO Code | TCMT 16 T3 08-KR 3225 |
| Item Group | 120 |
| Relief Angle | 7 ° |
| Series | CoroTurn® 107 |
| Thickness | 0.156 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | KR |
| Cutting Direction | Neutral |
| For Use On | Cast Iron |
| Inscribed Circle | 3/8 in |
| Insert Size | 3(2.5)2 |
| Insert Style | TCMT |
| Manufacturer's Grade | 3225 |
| Material | Carbide |
| Material Grade | K |
| Maximum Depth of Cut | 4 mm |
| Rake | Positive |
| Seat Size | 16 |
| Shape | Triangle |
| PR930 grade hard TiCN base PVD coated super micrograin carbide |
| Low cutting speed, precise cutting with sharp edge |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external machining of small, long, slender components and internal machining |
| The positive insert shape combines low cutting forces with good edge strength |
| The screw clamping ensures stability and unobstructed chip flow |
| 0.12 - 0.35 mm/r cutting feed |
| 20 life cycle state |
