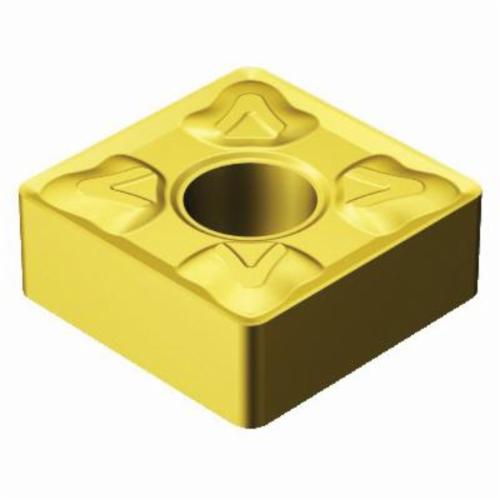

Sandvik Coromant 6863569 T-Max® P Negative Basic Shape Turning Insert, SNMG 432-XM 2025, S-Square, SNMG Insert, 2025
Custom_Product_Images_Illustration
Sandvik Coromant 6863569 T-Max® P Negative Basic Shape Turning Insert, SNMG 432-XM 2025, S-Square, SNMG Insert, 2025
SKU1243634
MFGR #6863569
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 1/2 in Length, XM Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: SNMG 432-XM 2025, ISO Code: SNMG 12 04 08-XM 2025, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 6 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 1/2 in Length, XM Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 2025, ANSI Code: SNMG 432-XM 2025, ISO Code: SNMG 12 04 08-XM 2025, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M
ANSI Code SNMG 432-XM 2025 Catalog Number 6863569 Corner Radius 0.0312 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2400 lb Hole Diameter 0.2029 in Included Angle 90 ° ISO Code SNMG 12 04 08-XM 2025 Length 1/2 in Relief Angle 0 ° Series T-Max® P Thickness 0.187 in Width 1/2 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Chipbreaker XM Cutting Direction Neutral For Use On Stainless Steel Inscribed Circle 1/2 in Insert Size 432 Insert Style SNMG Manufacturer's Grade 2025 Material Carbide Material Grade M Maximum Depth of Cut 6 mm Rake Negative Seat Size 12 Shape Square Positive flank Positive rake, low cutting forces Chipbreaker on one side with hole and countersink ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.12 - 0.5 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | SNMG 432-XM 2025 |
| Catalog Number | 6863569 |
| Corner Radius | 0.0312 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2400 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 12 04 08-XM 2025 |
| Length | 1/2 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.187 in |
| Width | 1/2 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Chipbreaker | XM |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | 432 |
| Insert Style | SNMG |
| Manufacturer's Grade | 2025 |
| Material | Carbide |
| Material Grade | M |
| Maximum Depth of Cut | 6 mm |
| Rake | Negative |
| Seat Size | 12 |
| Shape | Square |
| Positive flank |
| Positive rake, low cutting forces |
| Chipbreaker on one side with hole and countersink |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.12 - 0.5 mm/r cutting feed |
| 20 life cycle state |
