Sandvik Coromant

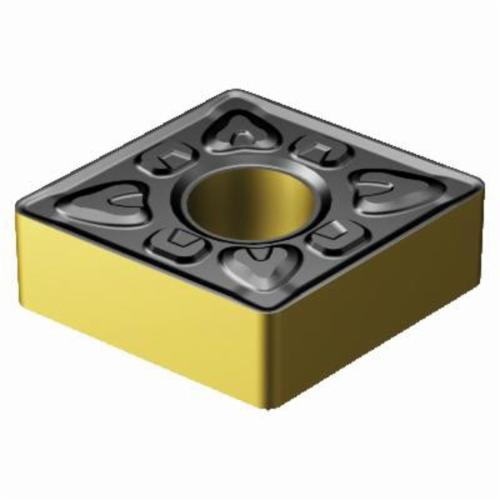

Sandvik Coromant 6863528 T-Max® P Negative Basic Shape Turning Insert, CNMG 643-XMR 4315, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6863528 T-Max® P Negative Basic Shape Turning Insert, CNMG 643-XMR 4315, C-80 deg Diamond, CNMG Insert
SKU1236583
MFGR #6863528
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 8.5 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 0.7615 in Length, XMR Chipbreaker, 0.0468 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 4315, ANSI Code: CNMG 643-XMR 4315, ISO Code: CNMG 19 06 12-XMR 4315, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 8.5 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 0.7615 in Length, XMR Chipbreaker, 0.0468 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 4315, ANSI Code: CNMG 643-XMR 4315, ISO Code: CNMG 19 06 12-XMR 4315, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
ANSI Code CNMG 643-XMR 4315 Catalog Number 6863528 Corner Radius 0.047 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.6900 lb Hole Diameter 0.312 in Included Angle 80 ° ISO Code CNMG 19 06 12-XMR 4315 Relief Angle 0 ° Series T-Max® P Thickness 1/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker XMR Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 3/4 in Insert Size 643 Insert Style CNMG Manufacturer's Grade 4315 Material Carbide Material Grade K, P Maximum Depth of Cut 0.335 in Rake Negative Seat Size 19 Shape Rhombic Chip breaking in moderate feed range Positive rake, low cutting forces Chipbreaker on one side with hole and countersink ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.25 - 0.7 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | CNMG 643-XMR 4315 |
| Catalog Number | 6863528 |
| Corner Radius | 0.047 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.6900 lb |
| Hole Diameter | 0.312 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 19 06 12-XMR 4315 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | XMR |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 3/4 in |
| Insert Size | 643 |
| Insert Style | CNMG |
| Manufacturer's Grade | 4315 |
| Material | Carbide |
| Material Grade | K, P |
| Maximum Depth of Cut | 0.335 in |
| Rake | Negative |
| Seat Size | 19 |
| Shape | Rhombic |
| Chip breaking in moderate feed range |
| Positive rake, low cutting forces |
| Chipbreaker on one side with hole and countersink |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.25 - 0.7 mm/r cutting feed |
| 20 life cycle state |
