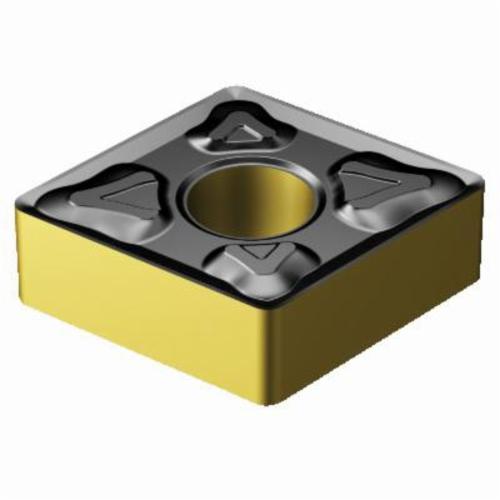

Sandvik Coromant 6863483 T-Max® P Negative Basic Shape Turning Insert, CNMG 433-XM 4325, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6863483 T-Max® P Negative Basic Shape Turning Insert, CNMG 433-XM 4325, C-80 deg Diamond, CNMG Insert
SKU1238006
MFGR #6863483
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, XM Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: CNMG 433-XM 4325, ISO Code: CNMG 12 04 12-XM 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, XM Chipbreaker, 0.0468 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: CNMG 433-XM 4325, ISO Code: CNMG 12 04 12-XM 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
Alternate Catalog Number CNMG 433-XM 4325 ANSI Code CNMG 433-XM 4325 Catalog Number 6863483 Corner Radius 0.047 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2200 lb Hole Diameter 0.203 in Included Angle 80 ° ISO Code CNMG 12 04 12-XM 4325 Item Group 112 Relief Angle 0 ° Series T-Max® P Thickness 0.187 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker XM Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 1/2 in Insert Size 433 Insert Style CNMG Manufacturer's Grade 4325 Material Carbide Material Grade K, P Maximum Depth of Cut 0.197 in Rake Negative Seat Size 12 Shape Rhombic Positive flank Positive rake, low cutting forces IC807 grade a tough sub-micron substrate, 'SUMO TEC' TiAlN PVD coated Suitable for low-to-medium cutting speeds Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel For external turning operations and internal machining 0.15 - 0.45 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 433-XM 4325 |
| ANSI Code | CNMG 433-XM 4325 |
| Catalog Number | 6863483 |
| Corner Radius | 0.047 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2200 lb |
| Hole Diameter | 0.203 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 12 04 12-XM 4325 |
| Item Group | 112 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.187 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | XM |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | 433 |
| Insert Style | CNMG |
| Manufacturer's Grade | 4325 |
| Material | Carbide |
| Material Grade | K, P |
| Maximum Depth of Cut | 0.197 in |
| Rake | Negative |
| Seat Size | 12 |
| Shape | Rhombic |
| Positive flank |
| Positive rake, low cutting forces |
| IC807 grade a tough sub-micron substrate, 'SUMO TEC' TiAlN PVD coated |
| Suitable for low-to-medium cutting speeds |
| Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel |
| For external turning operations and internal machining |
| 0.15 - 0.45 mm/r cutting feed |
| 20 life cycle state |
