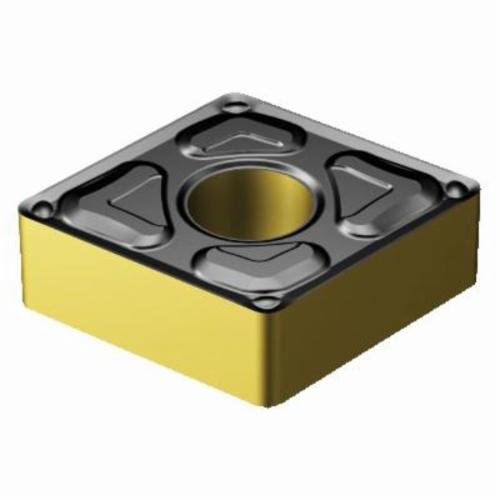

Sandvik Coromant 6863448 T-Max® P Negative Basic Shape Turning Insert, CNMG 431-XF 4325, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6863448 T-Max® P Negative Basic Shape Turning Insert, CNMG 431-XF 4325, C-80 deg Diamond, CNMG Insert
SKU931412
MFGR #6863448
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 4 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, XF Chipbreaker, 0.0156 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: CNMG 431-XF 4325, ISO Code: CNMG 12 04 04-XF 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 4 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.5077 in Length, XF Chipbreaker, 0.0156 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: CNMG 431-XF 4325, ISO Code: CNMG 12 04 04-XF 4325, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: P
Alternate Catalog Number CNMG 431-XF 4325 ANSI Code CNMG 431-XF 4325 Catalog Number 6863448 Corner Radius 0.016 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2400 lb Hole Diameter 0.2029 in Included Angle 80 ° ISO Code CNMG 12 04 04-XF 4325 Item Group 112 Relief Angle 0 ° Series T-Max® P Thickness 0.187 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker XF Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 1/2 in Insert Size 431 Insert Style CNMG Manufacturer's Grade 4325 Material Carbide Material Grade K, P Maximum Depth of Cut 0.157 in Rake Negative Seat Size 12 Shape Rhombic Single sided turning inserts for semi-finishing and finishing Chip breaking in moderate feed range Positive rake, low cutting forces Used for soft materials and exotic alloys Chipbreaker on one side, with hole and countersink For external turning operations and internal machining 0.04 - 0.2 mm/r cutting feed 30 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 431-XF 4325 |
| ANSI Code | CNMG 431-XF 4325 |
| Catalog Number | 6863448 |
| Corner Radius | 0.016 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2400 lb |
| Hole Diameter | 0.2029 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 12 04 04-XF 4325 |
| Item Group | 112 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 0.187 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | XF |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 1/2 in |
| Insert Size | 431 |
| Insert Style | CNMG |
| Manufacturer's Grade | 4325 |
| Material | Carbide |
| Material Grade | K, P |
| Maximum Depth of Cut | 0.157 in |
| Rake | Negative |
| Seat Size | 12 |
| Shape | Rhombic |
| Single sided turning inserts for semi-finishing and finishing |
| Chip breaking in moderate feed range |
| Positive rake, low cutting forces |
| Used for soft materials and exotic alloys |
| Chipbreaker on one side, with hole and countersink |
| For external turning operations and internal machining |
| 0.04 - 0.2 mm/r cutting feed |
| 30 life cycle state |
