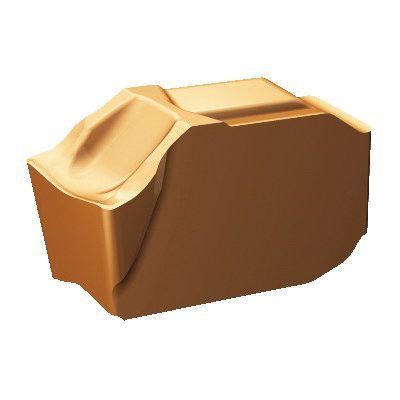

Sandvik Coromant 6856553 CoroMill® QD Grooving Insert, QD-NJ-0500-030E-SL 1030, QD-N..E-SL Insert, 0.1968 in W Cutting, 1030, QD-NJ-0500-030E-SL 1030
Custom_Product_Images_Illustration
Sandvik Coromant 6856553 CoroMill® QD Grooving Insert, QD-NJ-0500-030E-SL 1030, QD-N..E-SL Insert, 0.1968 in W Cutting, 1030, QD-NJ-0500-030E-SL 1030
SKU1229530
MFGR #6856553
Your Cost: $25.73/ea
List: Sandvik Coromant Grooving Insert, Series: CoroMill® QD, QD-N..E-SL Insert, 0.1968 in Cutting Width, SL Chipbreaker, 0.0118 in Corner Radius, 0.1968 in Thickness, 0.5511 in Length, Manufacturers Grade: 1030, ANSI Code: QD-NJ-0500-030E-SL 1030, ISO Code: QD-NJ-0500-030E-SL 1030, Neutral Hand, Carbide, PVD Coated, Material Grade: H/M/S
Sandvik Coromant Grooving Insert, Series: CoroMill® QD, QD-N..E-SL Insert, 0.1968 in Cutting Width, SL Chipbreaker, 0.0118 in Corner Radius, 0.1968 in Thickness, 0.5511 in Length, Manufacturers Grade: 1030, ANSI Code: QD-NJ-0500-030E-SL 1030, ISO Code: QD-NJ-0500-030E-SL 1030, Neutral Hand, Carbide, PVD Coated, Material Grade: H/M/S
ANSI Code QD-NJ-0500-030E-SL 1030 Catalog Number 6856553 Country of Origin SE Finish PVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral ISO Code QD-NJ-0500-030E-SL 1030 Length 0.5511 in Material Grade H/M/S Series CoroMill® QD Shape PVD Thickness 0.1968 in Type Neutral Width SL Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SL Corner Radius 0.0118 in Cutting Direction Neutral Cutting Width 0.0000 Insert Size 14 mm Insert Style QD-N..E-SL Lead Angle 5 mm Manufacturer's Grade 1030 Material Carbide Maximum Depth of Cut 0.3 mm Rake CoroMill® QD 7 deg clearance 20 life cycle state 0 deg body machine side 0.005 mm W cutting lower tolerance 0.055 mm W cutting upper tolerance Light operation Concave clamping E cutting edge condition 1-side cutting 0.01 - 0.07 mm/r cutting feed 7 insert mounting style code J insert seat size code E tolerance class insert
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | QD-NJ-0500-030E-SL 1030 |
| Catalog Number | 6856553 |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| ISO Code | QD-NJ-0500-030E-SL 1030 |
| Length | 0.5511 in |
| Material Grade | H/M/S |
| Series | CoroMill® QD |
| Shape | PVD |
| Thickness | 0.1968 in |
| Type | Neutral |
| Width | SL |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SL |
| Corner Radius | 0.0118 in |
| Cutting Direction | Neutral |
| Cutting Width | 0.0000 |
| Insert Size | 14 mm |
| Insert Style | QD-N..E-SL |
| Lead Angle | 5 mm |
| Manufacturer's Grade | 1030 |
| Material | Carbide |
| Maximum Depth of Cut | 0.3 mm |
| Rake | CoroMill® QD |
| 7 deg clearance |
| 20 life cycle state |
| 0 deg body machine side |
| 0.005 mm W cutting lower tolerance |
| 0.055 mm W cutting upper tolerance |
| Light operation |
| Concave clamping |
| E cutting edge condition |
| 1-side cutting |
| 0.01 - 0.07 mm/r cutting feed |
| 7 insert mounting style code |
| J insert seat size code |
| E tolerance class insert |
