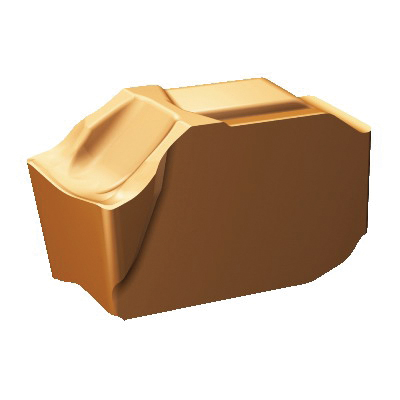

Sandvik Coromant 6856551 CoroMill® QD Grooving Insert, QD-NH-0400-025E-SL 1030 ANSI, QD-N..E-SL Insert, 0.1574 in W Cutting
Custom_Product_Images_Illustration
Sandvik Coromant 6856551 CoroMill® QD Grooving Insert, QD-NH-0400-025E-SL 1030 ANSI, QD-N..E-SL Insert, 0.1574 in W Cutting
SKU1229479
MFGR #6856551
Your Cost: $24.22/ea
List: Sandvik Coromant Grooving Insert, Series: CoroMill® QD, QD-N..E-SL Insert, 0.1574 in Cutting Width, SL Chipbreaker, 0.0098 in Corner Radius, 0.1574 in Thickness, 0.4724 in Length, Manufacturers Grade: 1030, ANSI Code: QD-NH-0400-025E-SL 1030, ISO Code: QD-NH-0400-025E-SL 1030, Neutral Hand, Carbide, PVD Coated, Material Grade: H/M/S
Sandvik Coromant Grooving Insert, Series: CoroMill® QD, QD-N..E-SL Insert, 0.1574 in Cutting Width, SL Chipbreaker, 0.0098 in Corner Radius, 0.1574 in Thickness, 0.4724 in Length, Manufacturers Grade: 1030, ANSI Code: QD-NH-0400-025E-SL 1030, ISO Code: QD-NH-0400-025E-SL 1030, Neutral Hand, Carbide, PVD Coated, Material Grade: H/M/S
ANSI Code QD-NH-0400-025E-SL 1030 Catalog Number 6856551 Country of Origin SE Finish PVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral ISO Code QD-NH-0400-025E-SL 1030 Length 0.4724 in Material Grade H/M/S Series CoroMill® QD Shape Neutral Thickness 0.1574 in Type QD-N..E-SL Width 12 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SL Corner Radius 0.0098 in Insert Size 4 mm Insert Style QD-N..E-SL Lead Angle 0.25 mm Manufacturer's Grade 1030 Material Carbide Maximum Depth of Cut 1030 Rake 4 mm 7 deg clearance 20 life cycle state 0 deg body machine side 0.005 mm W cutting lower tolerance 0.055 mm W cutting upper tolerance Light operation Concave clamping E cutting edge condition 1-side cutting 0.01 - 0.07 mm/r cutting feed 7 insert mounting style code H insert seat size code E tolerance class insert
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | QD-NH-0400-025E-SL 1030 |
| Catalog Number | 6856551 |
| Country of Origin | SE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| ISO Code | QD-NH-0400-025E-SL 1030 |
| Length | 0.4724 in |
| Material Grade | H/M/S |
| Series | CoroMill® QD |
| Shape | Neutral |
| Thickness | 0.1574 in |
| Type | QD-N..E-SL |
| Width | 12 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SL |
| Corner Radius | 0.0098 in |
| Insert Size | 4 mm |
| Insert Style | QD-N..E-SL |
| Lead Angle | 0.25 mm |
| Manufacturer's Grade | 1030 |
| Material | Carbide |
| Maximum Depth of Cut | 1030 |
| Rake | 4 mm |
| 7 deg clearance |
| 20 life cycle state |
| 0 deg body machine side |
| 0.005 mm W cutting lower tolerance |
| 0.055 mm W cutting upper tolerance |
| Light operation |
| Concave clamping |
| E cutting edge condition |
| 1-side cutting |
| 0.01 - 0.07 mm/r cutting feed |
| 7 insert mounting style code |
| H insert seat size code |
| E tolerance class insert |
