Sandvik Coromant

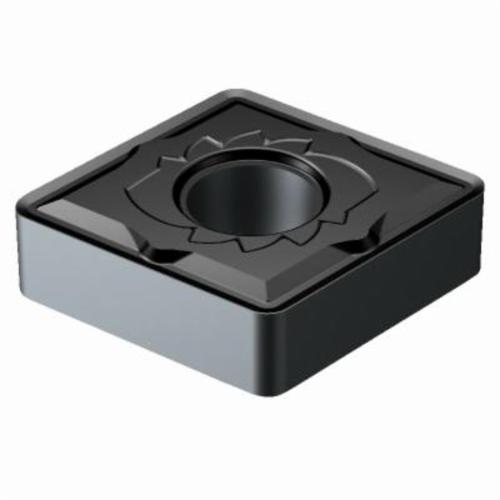

Sandvik Coromant 6851315 T-Max® P Negative Basic Shape Turning Insert, CNMG 642-SM 1105, C-80 deg Diamond, CNMG Insert, 1105
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6851315 T-Max® P Negative Basic Shape Turning Insert, CNMG 642-SM 1105, C-80 deg Diamond, CNMG Insert, 1105
SKU1238060
MFGR #6851315
Your Cost: $39.04/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 8 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 0.7615 in Length, SM Chipbreaker, 0.0312 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 1105, ANSI Code: CNMG 642-SM 1105, ISO Code: CNMG 19 06 08-SM 1105, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 8 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 0.7615 in Length, SM Chipbreaker, 0.0312 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 1105, ANSI Code: CNMG 642-SM 1105, ISO Code: CNMG 19 06 08-SM 1105, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: S
Alternate Catalog Number CNMG 642-SM 1105 ANSI Code CNMG 642-SM 1105 Catalog Number 6851315 Corner Radius 0.031 in Country of Origin SE Finish PVD-TiAlN Coated Gross Weight Per Pack 0.7100 lb Hole Diameter 0.312 in Included Angle 80 ° ISO Code CNMG 19 06 08-SM 1105 Item Group 110 Relief Angle 0 ° Series T-Max® P Thickness 1/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker SM Cutting Direction Neutral For Use On Stainless Steel, Heat Resistant Super Alloys and Titanium Inscribed Circle 3/4 in Insert Size 642 Insert Style CNMG Manufacturer's Grade 1105 Material Carbide Material Grade M, S Maximum Depth of Cut 0.315 in Rake Negative Seat Size 19 Shape Rhombic Double-sided 80 deg rhombic inserts, first choice for machining stainless and low carbon steel Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life IC6015 grade a very hard substrate with a cobalt enriched outer layer and alpha Al2O3 coating Used for finishing and medium turning of stainless steel at high cutting speed Long tool life and excellent repeatability Chipbreaker on both sides, with hole For external turning operations and internal machining 0.15 - 0.5 mm/r cutting feed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 642-SM 1105 |
| ANSI Code | CNMG 642-SM 1105 |
| Catalog Number | 6851315 |
| Corner Radius | 0.031 in |
| Country of Origin | SE |
| Finish | PVD-TiAlN Coated |
| Gross Weight Per Pack | 0.7100 lb |
| Hole Diameter | 0.312 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 19 06 08-SM 1105 |
| Item Group | 110 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | SM |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel, Heat Resistant Super Alloys and Titanium |
| Inscribed Circle | 3/4 in |
| Insert Size | 642 |
| Insert Style | CNMG |
| Manufacturer's Grade | 1105 |
| Material | Carbide |
| Material Grade | M, S |
| Maximum Depth of Cut | 0.315 in |
| Rake | Negative |
| Seat Size | 19 |
| Shape | Rhombic |
| Double-sided 80 deg rhombic inserts, first choice for machining stainless and low carbon steel |
| Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life |
| IC6015 grade a very hard substrate with a cobalt enriched outer layer and alpha Al2O3 coating |
| Used for finishing and medium turning of stainless steel at high cutting speed |
| Long tool life and excellent repeatability |
| Chipbreaker on both sides, with hole |
| For external turning operations and internal machining |
| 0.15 - 0.5 mm/r cutting feed |
