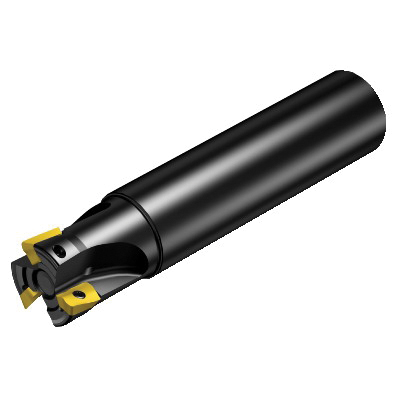

Sandvik Coromant 6851133 CoroMill® 390 Square Shoulder Milling Cutter, RA390..Oxx..-07 Insert, 1 in Cutting, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6851133 CoroMill® 390 Square Shoulder Milling Cutter, RA390..Oxx..-07 Insert, 1 in Cutting, Right Hand
SKU1244513
MFGR #6851133
$/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 390, 1 in Cutting Dia, 4.7244 in Overall Length, 0.2283 in Maximum Depth of Cut, RA390..Oxx..-07 Insert, 7 Inserts, Insert Compatibility: 390R-07, 1 in Shank Dia, Right Hand Cutting, ANSI Code: RA390-025O25-07H, ISO Code: RA390-025O25-07H, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 390, 1 in Cutting Dia, 4.7244 in Overall Length, 0.2283 in Maximum Depth of Cut, RA390..Oxx..-07 Insert, 7 Inserts, Insert Compatibility: 390R-07, 1 in Shank Dia, Right Hand Cutting, ANSI Code: RA390-025O25-07H, ISO Code: RA390-025O25-07H, Steel
Alternate Catalog Number RA390-025O25-07H ANSI Code RA390-025O25-07H Catalog Number 6851133 Country of Origin SE Gross Weight Per Pack 1.0500 lb ISO Code RA390-025O25-07H Item Group 440 Lead Angle 90 ° Material Steel Series CoroMill® 390 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 1 in Cutting Direction Right Hand Insert Compatibility 390R-07 Insert Style RA390..Oxx..-07 Maximum Depth of Cut 0.2283 in Number of Inserts 7 Overall Length 4.7244 in Shank Diameter 1 in Shank Length 3.4646 in Shank Type Straight Through Coolant Yes 24.4 mm Dia x 32 mm L body 0.5 mm D plunge Axial concentric coolant entry 10 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 25.4 mm Dia maximum cutting 90 deg cutting edge 32 mm L usable 32.7 - 62.06 mm overhang 1.4 deg maximum ramping 28000 r/min 0.5 Nm torque 20 life cycle state 1 maximum working engagement ratio Cylindrical shank adaptive interface without clamping features
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | RA390-025O25-07H |
| ANSI Code | RA390-025O25-07H |
| Catalog Number | 6851133 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.0500 lb |
| ISO Code | RA390-025O25-07H |
| Item Group | 440 |
| Lead Angle | 90 ° |
| Material | Steel |
| Series | CoroMill® 390 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 1 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 390R-07 |
| Insert Style | RA390..Oxx..-07 |
| Maximum Depth of Cut | 0.2283 in |
| Number of Inserts | 7 |
| Overall Length | 4.7244 in |
| Shank Diameter | 1 in |
| Shank Length | 3.4646 in |
| Shank Type | Straight |
| Through Coolant | Yes |
| 24.4 mm Dia x 32 mm L body |
| 0.5 mm D plunge |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 25.4 mm Dia maximum cutting |
| 90 deg cutting edge |
| 32 mm L usable |
| 32.7 - 62.06 mm overhang |
| 1.4 deg maximum ramping |
| 28000 r/min |
| 0.5 Nm torque |
| 20 life cycle state |
| 1 maximum working engagement ratio |
| Cylindrical shank adaptive interface without clamping features |
