Sandvik Coromant

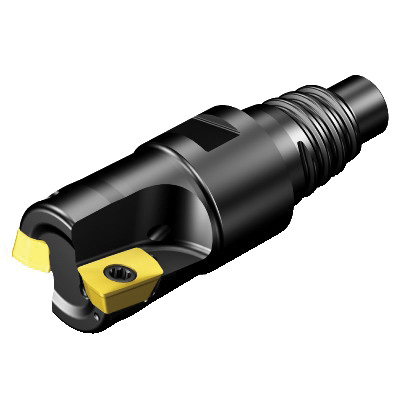

Sandvik Coromant 6851122 CoroMill® 390 Square Shoulder Milling Cutter, RA390..EH..-07 Insert, 5/8 in Cutting, Right Hand, 0.2283 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6851122 CoroMill® 390 Square Shoulder Milling Cutter, RA390..EH..-07 Insert, 5/8 in Cutting, Right Hand, 0.2283 in Max Depth of Cut
SKU1244514
MFGR #6851122
$/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 390, 5/8 in Cutting Dia, 1.6535 in Overall Length, 0.2283 in Maximum Depth of Cut, RA390..EH..-07 Insert, 4 Inserts, Insert Compatibility: 390R-07, 0.6102 in Shank Dia, Right Hand Cutting, ANSI Code: RA390-016EH16-07H, ISO Code: RA390-016EH16-07H, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 390, 5/8 in Cutting Dia, 1.6535 in Overall Length, 0.2283 in Maximum Depth of Cut, RA390..EH..-07 Insert, 4 Inserts, Insert Compatibility: 390R-07, 0.6102 in Shank Dia, Right Hand Cutting, ANSI Code: RA390-016EH16-07H, ISO Code: RA390-016EH16-07H, Steel
Alternate Catalog Number RA390-016EH16-07H ANSI Code RA390-016EH16-07H Catalog Number 6851122 Country of Origin SE Gross Weight Per Pack 0.3000 lb ISO Code RA390-016EH16-07H Item Group 440 Lead Angle 90 ° Material Steel Series CoroMill® 390 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 5/8 in Cutting Direction Right Hand Insert Compatibility 390R-07 Insert Style RA390..EH..-07 Maximum Depth of Cut 0.2283 in Number of Inserts 4 Overall Length 1.6535 in Shank Diameter 0.6102 in Through Coolant Yes 14.875 mm Dia x 15.7 mm L body 0.5 mm D plunge Axial concentric coolant entry 10 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 15.875 mm Dia maximum cutting 90 deg cutting edge 15.7 mm L usable 25 - 25 mm overhang 3 deg maximum ramping 37800 r/min cutting feed 0.5 Nm torque 20 life cycle state 1 maximum working engagement ratio Coromant EH adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | RA390-016EH16-07H |
| ANSI Code | RA390-016EH16-07H |
| Catalog Number | 6851122 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.3000 lb |
| ISO Code | RA390-016EH16-07H |
| Item Group | 440 |
| Lead Angle | 90 ° |
| Material | Steel |
| Series | CoroMill® 390 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 5/8 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 390R-07 |
| Insert Style | RA390..EH..-07 |
| Maximum Depth of Cut | 0.2283 in |
| Number of Inserts | 4 |
| Overall Length | 1.6535 in |
| Shank Diameter | 0.6102 in |
| Through Coolant | Yes |
| 14.875 mm Dia x 15.7 mm L body |
| 0.5 mm D plunge |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 15.875 mm Dia maximum cutting |
| 90 deg cutting edge |
| 15.7 mm L usable |
| 25 - 25 mm overhang |
| 3 deg maximum ramping |
| 37800 r/min cutting feed |
| 0.5 Nm torque |
| 20 life cycle state |
| 1 maximum working engagement ratio |
| Coromant EH adaptive interface |
