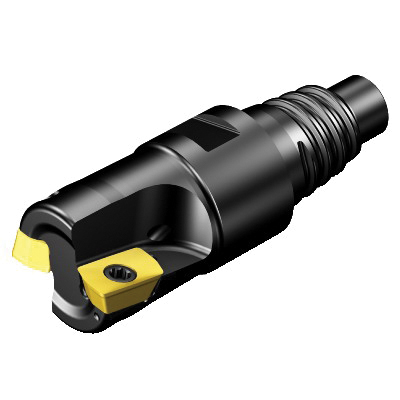

Sandvik Coromant 6851117 CoroMill® 390 Square Shoulder Milling Cutter, RA390..EH..-07 Insert, 1/2 in Cutting, Right Hand, 0.2283 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 6851117 CoroMill® 390 Square Shoulder Milling Cutter, RA390..EH..-07 Insert, 1/2 in Cutting, Right Hand, 0.2283 in Max Depth of Cut
SKU1163718
MFGR #6851117
$/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 390, 1/2 in Cutting Dia, 1.3307 in Overall Length, 0.2283 in Maximum Depth of Cut, RA390..EH..-07 Insert, 2 Inserts, Insert Compatibility: 390R-07, 0.4842 in Shank Dia, Right Hand Cutting, ANSI Code: RA390-013EH12-07L, ISO Code: RA390-013EH12-07L, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 390, 1/2 in Cutting Dia, 1.3307 in Overall Length, 0.2283 in Maximum Depth of Cut, RA390..EH..-07 Insert, 2 Inserts, Insert Compatibility: 390R-07, 0.4842 in Shank Dia, Right Hand Cutting, ANSI Code: RA390-013EH12-07L, ISO Code: RA390-013EH12-07L, Steel
Alternate Catalog Number RA390-013EH12-07L ANSI Code RA390-013EH12-07L Brand Sandvik Coromant Catalog Number 6851117 Country of Origin SE Cutting Diameter 1/2 in Cutting Direction Right Hand Gross Weight Per Pack 0.2700 lb Insert Compatibility 390R-07 Insert Style RA390..EH..-07 ISO Code RA390-013EH12-07L Item Group 440 Lead Angle 90 ° Manufacturer Sandvik Coromant Material Steel Maximum Depth of Cut 0.2283 in Number of Inserts 2 Overall Length 1.3307 in Series CoroMill® 390 Shank Diameter 0.4842 in Stock Status NONSTOCK Through Coolant Yes 12 mm Dia x 11.9 mm L body 0.5 mm D plunge Axial concentric coolant entry 10 bar coolant pressure 40 - 60 deg insert screw clamping interface 12.7 mm Dia maximum cutting 90 deg cutting edge 11.9 mm L usable 20 - 20 mm overhang 4.5 deg maximum ramping 44500 r/min 0.5 Nm torque 20 life cycle state 1 maximum working engagement ratio Coromant EH adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | RA390-013EH12-07L |
| ANSI Code | RA390-013EH12-07L |
| Brand | Sandvik Coromant |
| Catalog Number | 6851117 |
| Country of Origin | SE |
| Cutting Diameter | 1/2 in |
| Cutting Direction | Right Hand |
| Gross Weight Per Pack | 0.2700 lb |
| Insert Compatibility | 390R-07 |
| Insert Style | RA390..EH..-07 |
| ISO Code | RA390-013EH12-07L |
| Item Group | 440 |
| Lead Angle | 90 ° |
| Manufacturer | Sandvik Coromant |
| Material | Steel |
| Maximum Depth of Cut | 0.2283 in |
| Number of Inserts | 2 |
| Overall Length | 1.3307 in |
| Series | CoroMill® 390 |
| Shank Diameter | 0.4842 in |
| Stock Status | NONSTOCK |
| Through Coolant | Yes |
| 12 mm Dia x 11.9 mm L body |
| 0.5 mm D plunge |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| 40 - 60 deg insert screw clamping interface |
| 12.7 mm Dia maximum cutting |
| 90 deg cutting edge |
| 11.9 mm L usable |
| 20 - 20 mm overhang |
| 4.5 deg maximum ramping |
| 44500 r/min |
| 0.5 Nm torque |
| 20 life cycle state |
| 1 maximum working engagement ratio |
| Coromant EH adaptive interface |
