Sandvik Coromant

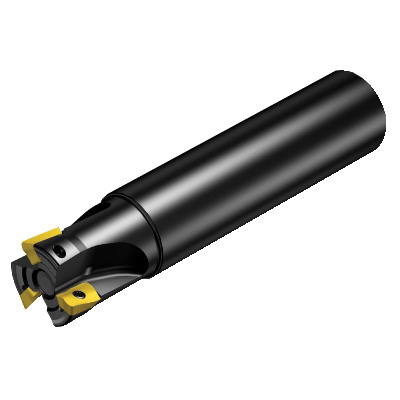

Sandvik Coromant 6851111 CoroMill® 390 Square Shoulder Milling Cutter, R390..Axx..-07 Insert, 0.9842 in Cutting, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6851111 CoroMill® 390 Square Shoulder Milling Cutter, R390..Axx..-07 Insert, 0.9842 in Cutting, Right Hand
SKU1244557
MFGR #6851111
$/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 390, 0.9842 in Cutting Dia, 4.7244 in Overall Length, 0.2283 in Maximum Depth of Cut, R390..Axx..-07 Insert, 5 Inserts, Insert Compatibility: 390R-07, 0.9842 in Shank Dia, Right Hand Cutting, ANSI Code: R390-025A25-07M, ISO Code: R390-025A25-07M, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 390, 0.9842 in Cutting Dia, 4.7244 in Overall Length, 0.2283 in Maximum Depth of Cut, R390..Axx..-07 Insert, 5 Inserts, Insert Compatibility: 390R-07, 0.9842 in Shank Dia, Right Hand Cutting, ANSI Code: R390-025A25-07M, ISO Code: R390-025A25-07M, Steel
Alternate Catalog Number R390-025A25-07M ANSI Code R390-025A25-07M Catalog Number 6851111 Country of Origin SE Gross Weight Per Pack 1.0200 lb ISO Code R390-025A25-07M Item Group 440 Lead Angle 90 ° Material Steel Series CoroMill® 390 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 0.9842 in Cutting Direction Right Hand Insert Compatibility 390R-07 Insert Style R390..Axx..-07 Maximum Depth of Cut 0.2283 in Number of Inserts 5 Overall Length 4.7244 in Shank Diameter 0.9842 in Through Coolant Yes 24 mm Dia x 32 mm L body 0.5 mm D plunge Axial concentric coolant entry 10 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 25 mm Dia maximum cutting 90 deg cutting edge 32 mm L usable 32.7 - 63 mm overhang 1.5 deg maximum ramping 28200 r/min cutting feed 0.5 Nm torque 20 life cycle state 1 maximum working engagement ratio Cylindrical shank adaptive interface without clamping features
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R390-025A25-07M |
| ANSI Code | R390-025A25-07M |
| Catalog Number | 6851111 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.0200 lb |
| ISO Code | R390-025A25-07M |
| Item Group | 440 |
| Lead Angle | 90 ° |
| Material | Steel |
| Series | CoroMill® 390 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 0.9842 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 390R-07 |
| Insert Style | R390..Axx..-07 |
| Maximum Depth of Cut | 0.2283 in |
| Number of Inserts | 5 |
| Overall Length | 4.7244 in |
| Shank Diameter | 0.9842 in |
| Through Coolant | Yes |
| 24 mm Dia x 32 mm L body |
| 0.5 mm D plunge |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 25 mm Dia maximum cutting |
| 90 deg cutting edge |
| 32 mm L usable |
| 32.7 - 63 mm overhang |
| 1.5 deg maximum ramping |
| 28200 r/min cutting feed |
| 0.5 Nm torque |
| 20 life cycle state |
| 1 maximum working engagement ratio |
| Cylindrical shank adaptive interface without clamping features |
