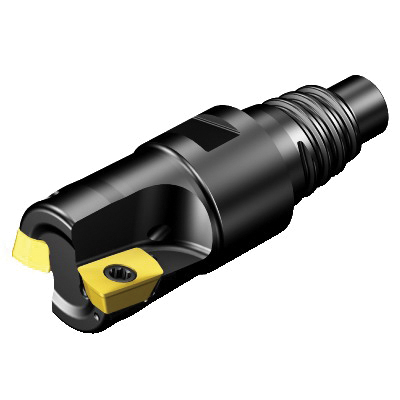

Sandvik Coromant 6851094 CoroMill® 390 Square Shoulder Milling Cutter, R390..EH..-07 Insert, 0.5393 in Cutting, Right Hand, 0.2283 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 6851094 CoroMill® 390 Square Shoulder Milling Cutter, R390..EH..-07 Insert, 0.5393 in Cutting, Right Hand, 0.2283 in Max Depth of Cut
SKU1253581
MFGR #6851094
$/ea
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 390, 0.5393 in Cutting Dia, 1.3307 in Overall Length, 0.2283 in Maximum Depth of Cut, R390..EH..-07 Insert, 3 Inserts, Insert Compatibility: 390R-07, 0.4606 in Shank Dia, Right Hand Cutting, ANSI Code: R390-0137EH12-07M, ISO Code: R390-0137EH12-07M, Steel
Sandvik Coromant Shoulder Milling Cutter, Square, Series: CoroMill® 390, 0.5393 in Cutting Dia, 1.3307 in Overall Length, 0.2283 in Maximum Depth of Cut, R390..EH..-07 Insert, 3 Inserts, Insert Compatibility: 390R-07, 0.4606 in Shank Dia, Right Hand Cutting, ANSI Code: R390-0137EH12-07M, ISO Code: R390-0137EH12-07M, Steel
Alternate Catalog Number R390-0137EH12-07M ANSI Code R390-0137EH12-07M Catalog Number 6851094 Country of Origin SE Gross Weight Per Pack 0.0400 lb Head Length Square Insert Gage Screw 11.7 mm ISO Code R390-0137EH12-07M Item Group 440 Material Steel Series CoroMill® 390 Type Square Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Diameter 0.5393 in Cutting Direction Right Hand Insert Compatibility 390R-07 Insert Style R390..EH..-07 Maximum Depth of Cut 0.2283 in Number of Inserts 3 Overall Length 1.3307 in Shank Diameter 0.4606 in Shank Length 5.8 mm Shank Type R390..EH..-07 12.9 mm Dia x 20 mm L body 0.5 mm D plunge Axial concentric coolant entry 10 bar coolant pressure Differential cutting pitch 40 - 60 deg insert screw clamping interface 13.7 mm Dia maximum cutting 90 deg cutting edge 20 - 20 mm overhang 3.9 deg maximum ramping 42000 r/min 0.5 Nm torque 20 life cycle state 1 maximum working engagement ratio Coromant EH adaptive interface
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | R390-0137EH12-07M |
| ANSI Code | R390-0137EH12-07M |
| Catalog Number | 6851094 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.0400 lb |
| Head Length | Square |
| Insert Gage Screw | 11.7 mm |
| ISO Code | R390-0137EH12-07M |
| Item Group | 440 |
| Material | Steel |
| Series | CoroMill® 390 |
| Type | Square |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Diameter | 0.5393 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 390R-07 |
| Insert Style | R390..EH..-07 |
| Maximum Depth of Cut | 0.2283 in |
| Number of Inserts | 3 |
| Overall Length | 1.3307 in |
| Shank Diameter | 0.4606 in |
| Shank Length | 5.8 mm |
| Shank Type | R390..EH..-07 |
| 12.9 mm Dia x 20 mm L body |
| 0.5 mm D plunge |
| Axial concentric coolant entry |
| 10 bar coolant pressure |
| Differential cutting pitch |
| 40 - 60 deg insert screw clamping interface |
| 13.7 mm Dia maximum cutting |
| 90 deg cutting edge |
| 20 - 20 mm overhang |
| 3.9 deg maximum ramping |
| 42000 r/min |
| 0.5 Nm torque |
| 20 life cycle state |
| 1 maximum working engagement ratio |
| Coromant EH adaptive interface |
