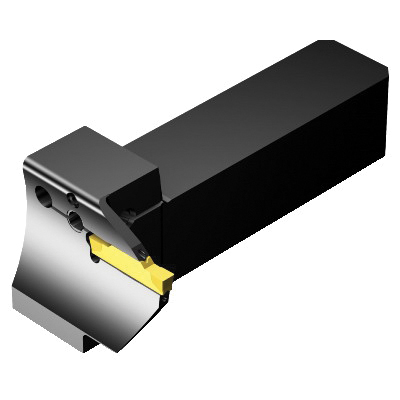

Sandvik Coromant 6838594 CoroCut® 1-2 QS, Left Hand, N123H2-0400-0004-TF Insert, H Insert Seat
Custom_Product_Images_Illustration
Sandvik Coromant 6838594 CoroCut® 1-2 QS, Left Hand, N123H2-0400-0004-TF Insert, H Insert Seat
SKU1253768
MFGR #6838594
$/ea
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2 QS, Insert Compatibility: N123H2-0400-0004-TF, QS-LG123H075C16E-132B, 4.3173 in Overall Length, Rectangular Shank, 1 in H x 1 in W Shank, H Insert Seat, Left Hand Cutting, 5.1968 in ID x 5.5118 to 9.0551 in OD Groove Width, Steel
Sandvik Coromant Shank Tool, Series: CoroCut® 1-2 QS, Insert Compatibility: N123H2-0400-0004-TF, QS-LG123H075C16E-132B, 4.3173 in Overall Length, Rectangular Shank, 1 in H x 1 in W Shank, H Insert Seat, Left Hand Cutting, 5.1968 in ID x 5.5118 to 9.0551 in OD Groove Width, Steel
Alternate Catalog Number QS-LG123H075C16E-132B Catalog Number 6838594 Country of Origin SE Geometry QS-LG123H075C16E-132B Gross Weight Per Pack 1.1000 lb Head Length Rectangular Item Group 480 Material Steel Series CoroCut® 1-2 QS Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Clamp Type CoroCut® 1-2 QS Cutting Direction Left Hand Groove Width 5.1968 in ID x 5.5118 to 9.0551 in OD Insert Compatibility N123H2-0400-0004-TF Insert Seat Size H Overall Length 4.3173 in Screw Type 1 in H x 1 in W Shank Size 1 in H x 1 in W Shank Type Rectangular Type 132 mm ID x 140 to 230 mm OD 90 deg body workpiece side 20 life cycle state 19.05 mm D maximum cutting Axial concentric coolant entry 150 bar coolant Axial inclined coolant exit 0 deg inclination 0 deg rake orthogonal 90 deg cutting edge 47.4 mm minimum overhang 46.45 mm width to cutting item reference point 2 axial groove support direction 25.4 mm W shank 46.45 mm W functiona ANSI Code: QS-LG123H075C16E-132B ISO Code: QS-LG123H075C16E-132B
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-LG123H075C16E-132B |
| Catalog Number | 6838594 |
| Country of Origin | SE |
| Geometry | QS-LG123H075C16E-132B |
| Gross Weight Per Pack | 1.1000 lb |
| Head Length | Rectangular |
| Item Group | 480 |
| Material | Steel |
| Series | CoroCut® 1-2 QS |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Clamp Type | CoroCut® 1-2 QS |
| Cutting Direction | Left Hand |
| Groove Width | 5.1968 in ID x 5.5118 to 9.0551 in OD |
| Insert Compatibility | N123H2-0400-0004-TF |
| Insert Seat Size | H |
| Overall Length | 4.3173 in |
| Screw Type | 1 in H x 1 in W |
| Shank Size | 1 in H x 1 in W |
| Shank Type | Rectangular |
| Type | 132 mm ID x 140 to 230 mm OD |
| 90 deg body workpiece side |
| 20 life cycle state |
| 19.05 mm D maximum cutting |
| Axial concentric coolant entry |
| 150 bar coolant |
| Axial inclined coolant exit |
| 0 deg inclination |
| 0 deg rake orthogonal |
| 90 deg cutting edge |
| 47.4 mm minimum overhang |
| 46.45 mm width to cutting item reference point |
| 2 axial groove support direction |
| 25.4 mm W shank |
| 46.45 mm W functiona |
| ANSI Code: QS-LG123H075C16E-132B |
| ISO Code: QS-LG123H075C16E-132B |
