Sandvik Coromant

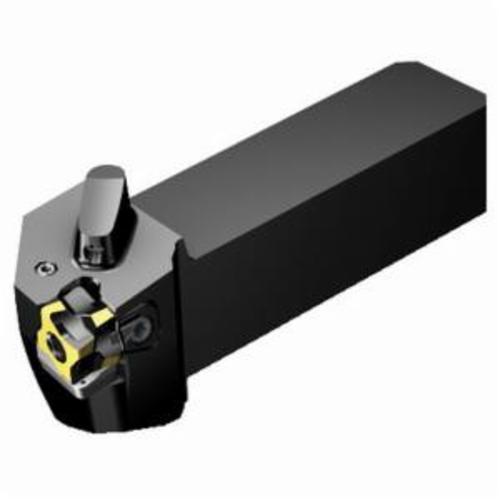

Sandvik Coromant 6814412 CoroTurn 300 QS Turning Shank Tool, 3-80-101108 Insert, -4.7 deg Lead, Rectangle Shank, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6814412 CoroTurn 300 QS Turning Shank Tool, 3-80-101108 Insert, -4.7 deg Lead, Rectangle Shank, Right Hand
SKU1244180
MFGR #6814412
$/ea
Sandvik Coromant Turning Shank Tool, Series: CoroTurn 300 QS, 4.5275 in Overall Length, Rectangle Shank, 0.9842 in H x 0.9842 in W Shank, Insert Compatibility: 3-80-101108, 10 Insert Seat, Right Hand Cutting, -4.7 deg Lead Angle, ANSI Code: QS-3-80LR252531-10C, ISO Code: QS-3-80LR252531-10C, -5.5 deg Rake, Steel
Sandvik Coromant Turning Shank Tool, Series: CoroTurn 300 QS, 4.5275 in Overall Length, Rectangle Shank, 0.9842 in H x 0.9842 in W Shank, Insert Compatibility: 3-80-101108, 10 Insert Seat, Right Hand Cutting, -4.7 deg Lead Angle, ANSI Code: QS-3-80LR252531-10C, ISO Code: QS-3-80LR252531-10C, -5.5 deg Rake, Steel
Alternate Catalog Number QS-3-80LR252531-10C ANSI Code QS-3-80LR252531-10C Catalog Number 6814412 Country of Origin SE Gross Weight Per Pack 1.5100 lb Insert Seat Size 10 ISO Code QS-3-80LR252531-10C Item Group 480 Material Steel Series CoroTurn 300 QS Shank Type Rectangle Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility 3-80-101108 Lead Angle -4.7 deg Overall Length 4.5275 in Rake -5.5 deg Shank Size 0.9842 in H x 0.9842 in W 10 life cycle state 0 deg body machine side 0 deg body workpiece side Axial concentric and radial entry 150 bar coolant Decentral focused exit with nozzles 31 mm L head bottom offset 94.7 deg cutting edge -6.466 deg inclination 115 mm L functional 56 mm overhang 0 deg ramping 10 mm insert seat 4.5 Nm torque QS-3-80-LR/L tool style 32 mm W functional 25 mm H functional G1/8 coolant thread
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-3-80LR252531-10C |
| ANSI Code | QS-3-80LR252531-10C |
| Catalog Number | 6814412 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.5100 lb |
| Insert Seat Size | 10 |
| ISO Code | QS-3-80LR252531-10C |
| Item Group | 480 |
| Material | Steel |
| Series | CoroTurn 300 QS |
| Shank Type | Rectangle |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | 3-80-101108 |
| Lead Angle | -4.7 deg |
| Overall Length | 4.5275 in |
| Rake | -5.5 deg |
| Shank Size | 0.9842 in H x 0.9842 in W |
| 10 life cycle state |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric and radial entry |
| 150 bar coolant |
| Decentral focused exit with nozzles |
| 31 mm L head bottom offset |
| 94.7 deg cutting edge |
| -6.466 deg inclination |
| 115 mm L functional |
| 56 mm overhang |
| 0 deg ramping |
| 10 mm insert seat |
| 4.5 Nm torque |
| QS-3-80-LR/L tool style |
| 32 mm W functional |
| 25 mm H functional |
| G1/8 coolant thread |
