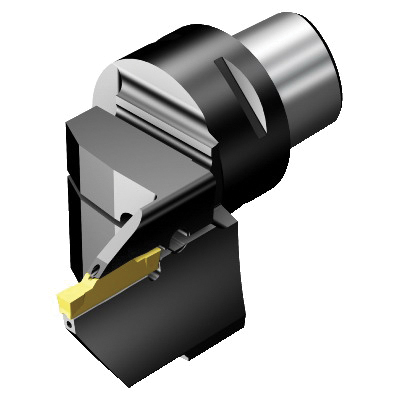

Sandvik Coromant 6798971 CoroCut® 1-2, Right Hand, N123J2-0500-0004-TF Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6798971 CoroCut® 1-2, Right Hand, N123J2-0500-0004-TF Insert
SKU1236472
MFGR #6798971
$/ea
Sandvik Coromant Parting and Grooving Cutting Unit, Series: CoroCut® 1-2, Right Hand Cutting, Insert Compatibility: N123J2-0500-0004-TF, 0.7874 in Maximum Depth of Cut, Steel
Sandvik Coromant Parting and Grooving Cutting Unit, Series: CoroCut® 1-2, Right Hand Cutting, Insert Compatibility: N123J2-0500-0004-TF, 0.7874 in Maximum Depth of Cut, Steel
Alternate Catalog Number C5-RF123J20CE-040B Catalog Number 6798971 Country of Origin SE Gross Weight Per Pack 1.7600 lb Head Length 65 mm Item Group 410 Material Steel Modular Head Style C5-RF123 Series CoroCut® 1-2 System Size C5 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 33 mm Cutting Direction Right Hand Insert Compatibility N123J2-0500-0004-TF Insert Style N123J2 Maximum Depth of Cut 20 mm Cost efficiency with two edges|Secure and efficient machining 0 deg workpiece side body Axial concentric and radial coolant entry 150 bar coolant Axial inclined coolant exit 40 mm Dia minimum inside axial groove 50 - 70 mm Dia axial groove 50 mm Dia connection S-Square insert shape 0 deg orthogonal rake 90 deg cutting edge 0 deg inclination 20 life cycle state 65 mm L functional 65 mm L to cutting item reference point 95 mm OAL 65 mm maximum overhang 33 mm W functional 30.5 mm W to cutting item reference point ANSI Code: C5-RF123J20CE-040B
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C5-RF123J20CE-040B |
| Catalog Number | 6798971 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.7600 lb |
| Head Length | 65 mm |
| Item Group | 410 |
| Material | Steel |
| Modular Head Style | C5-RF123 |
| Series | CoroCut® 1-2 |
| System Size | C5 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 33 mm |
| Cutting Direction | Right Hand |
| Insert Compatibility | N123J2-0500-0004-TF |
| Insert Style | N123J2 |
| Maximum Depth of Cut | 20 mm |
| Cost efficiency with two edges|Secure and efficient machining |
| 0 deg workpiece side body |
| Axial concentric and radial coolant entry |
| 150 bar coolant |
| Axial inclined coolant exit |
| 40 mm Dia minimum inside axial groove |
| 50 - 70 mm Dia axial groove |
| 50 mm Dia connection |
| S-Square insert shape |
| 0 deg orthogonal rake |
| 90 deg cutting edge |
| 0 deg inclination |
| 20 life cycle state |
| 65 mm L functional |
| 65 mm L to cutting item reference point |
| 95 mm OAL |
| 65 mm maximum overhang |
| 33 mm W functional |
| 30.5 mm W to cutting item reference point |
| ANSI Code: C5-RF123J20CE-040B |
