Sandvik Coromant

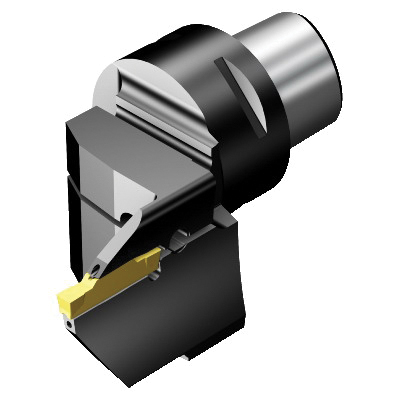

Sandvik Coromant 6798939 CoroCut® 1-2, Left Hand, N123J2-0500-0004-TF Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6798939 CoroCut® 1-2, Left Hand, N123J2-0500-0004-TF Insert
SKU1237970
MFGR #6798939
$/ea
Sandvik Coromant Parting and Grooving Cutting Unit, Series: CoroCut® 1-2, Left Hand Cutting, Insert Compatibility: N123J2-0500-0004-TF, 0.9842 in Maximum Depth of Cut, 1/2 in Center to Cutting Edge, Steel
Sandvik Coromant Parting and Grooving Cutting Unit, Series: CoroCut® 1-2, Left Hand Cutting, Insert Compatibility: N123J2-0500-0004-TF, 0.9842 in Maximum Depth of Cut, 1/2 in Center to Cutting Edge, Steel
Alternate Catalog Number C4-LF123J25CE-120B Catalog Number 6798939 Country of Origin SE Gross Weight Per Pack 1.2500 lb Head Length 70 mm Item Group 410 Material Steel Modular Head Style C4-LF123 Series CoroCut® 1-2 System Size C4 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Center to Cutting Edge 27 mm Cutting Direction Left Hand Insert Compatibility N123J2-0500-0004-TF Insert Style N123J2 Maximum Depth of Cut 25 mm Cost efficiency with two edges|Secure and efficient machining 0 deg workpiece side body Axial concentric and radial coolant entry 150 bar coolant Axial inclined coolant exit 120 mm Dia minimum inside axial groove 130 - 180 mm Dia axial groove 40 mm Dia connection S-Square insert shape 0 deg orthogonal rake 90 deg cutting edge 0 deg inclination 20 life cycle state 3/16 in THK insert 70 mm L to cutting item reference point 94 mm OAL 70 mm maximum overhang 27 mm W functional 24.5 mm W to cutting item reference point Floating wedge clamping lock
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | C4-LF123J25CE-120B |
| Catalog Number | 6798939 |
| Country of Origin | SE |
| Gross Weight Per Pack | 1.2500 lb |
| Head Length | 70 mm |
| Item Group | 410 |
| Material | Steel |
| Modular Head Style | C4-LF123 |
| Series | CoroCut® 1-2 |
| System Size | C4 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Center to Cutting Edge | 27 mm |
| Cutting Direction | Left Hand |
| Insert Compatibility | N123J2-0500-0004-TF |
| Insert Style | N123J2 |
| Maximum Depth of Cut | 25 mm |
| Cost efficiency with two edges|Secure and efficient machining |
| 0 deg workpiece side body |
| Axial concentric and radial coolant entry |
| 150 bar coolant |
| Axial inclined coolant exit |
| 120 mm Dia minimum inside axial groove |
| 130 - 180 mm Dia axial groove |
| 40 mm Dia connection |
| S-Square insert shape |
| 0 deg orthogonal rake |
| 90 deg cutting edge |
| 0 deg inclination |
| 20 life cycle state |
| 3/16 in THK insert |
| 70 mm L to cutting item reference point |
| 94 mm OAL |
| 70 mm maximum overhang |
| 27 mm W functional |
| 24.5 mm W to cutting item reference point |
| Floating wedge clamping lock |
