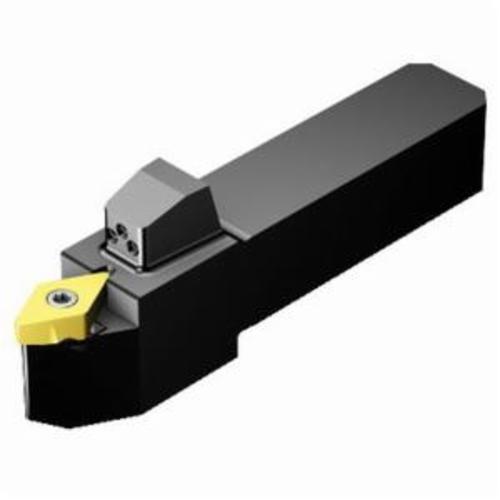

Sandvik Coromant 6766782 CoroTurn TR QS Turning Shank Tool, TR-DC1308 Insert, 27.5 deg Lead, Rectangle Shank, Neutral
Custom_Product_Images_Illustration
Sandvik Coromant 6766782 CoroTurn TR QS Turning Shank Tool, TR-DC1308 Insert, 27.5 deg Lead, Rectangle Shank, Neutral
SKU1253537
MFGR #6766782
$/ea
Sandvik Coromant Turning Shank Tool, Series: CoroTurn TR QS, 5.0393 in Overall Length, Rectangle Shank, 0.9842 in H x 0.9842 in W Shank, Insert Compatibility: TR-DC1308, 13 Insert Seat, Neutral Cutting, 27.5 deg Lead Angle, ANSI Code: QS-TR-D13NCN 2525HP, ISO Code: QS-TR-D13NCN 2525HP, 0 deg Rake, Steel
Sandvik Coromant Turning Shank Tool, Series: CoroTurn TR QS, 5.0393 in Overall Length, Rectangle Shank, 0.9842 in H x 0.9842 in W Shank, Insert Compatibility: TR-DC1308, 13 Insert Seat, Neutral Cutting, 27.5 deg Lead Angle, ANSI Code: QS-TR-D13NCN 2525HP, ISO Code: QS-TR-D13NCN 2525HP, 0 deg Rake, Steel
Alternate Catalog Number QS-TR-D13NCN 2525HP ANSI Code QS-TR-D13NCN 2525HP Back of Bar to Cutting Edge 13 mm Catalog Number 6766782 Country of Origin SE Gross Weight Per Pack 0.66000 lb Head Length Rectangular Inscribed Circle Neutral Insert Seat Size 13 ISO Code QS-TR-D13NCN 2525HP Item Group 480 Material Steel Series CoroTurn TR QS Shank Type Rectangle Type TR-DC1308 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Neutral Insert Compatibility TR-DC1308 Lead Angle 27.5 deg Overall Length 5.0393 in Rake 0 deg Shank Size 0.9842 in H x 0.9842 in W Tool Holder Style 27.5 deg 20 life cycle state 0 deg body machine side 0 deg body workpiece side Axial concentric and radial entry 150 bar coolant 40 - 60 deg insert screw, rail bottom Decentral focused exit with nozzles 44 mm L head bottom offset 62.5 deg cutting edge 0 deg inclination 128 mm L functional 69 mm overhang 60 deg ramping D-55 deg diamond insert shape 13 mm insert seat 3 Nm torque QS-TR-D..JCN..HP tool style 13 mm W functional 25 mm H functional
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-TR-D13NCN 2525HP |
| ANSI Code | QS-TR-D13NCN 2525HP |
| Back of Bar to Cutting Edge | 13 mm |
| Catalog Number | 6766782 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.66000 lb |
| Head Length | Rectangular |
| Inscribed Circle | Neutral |
| Insert Seat Size | 13 |
| ISO Code | QS-TR-D13NCN 2525HP |
| Item Group | 480 |
| Material | Steel |
| Series | CoroTurn TR QS |
| Shank Type | Rectangle |
| Type | TR-DC1308 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Neutral |
| Insert Compatibility | TR-DC1308 |
| Lead Angle | 27.5 deg |
| Overall Length | 5.0393 in |
| Rake | 0 deg |
| Shank Size | 0.9842 in H x 0.9842 in W |
| Tool Holder Style | 27.5 deg |
| 20 life cycle state |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric and radial entry |
| 150 bar coolant |
| 40 - 60 deg insert screw, rail bottom |
| Decentral focused exit with nozzles |
| 44 mm L head bottom offset |
| 62.5 deg cutting edge |
| 0 deg inclination |
| 128 mm L functional |
| 69 mm overhang |
| 60 deg ramping |
| D-55 deg diamond insert shape |
| 13 mm insert seat |
| 3 Nm torque |
| QS-TR-D..JCN..HP tool style |
| 13 mm W functional |
| 25 mm H functional |
