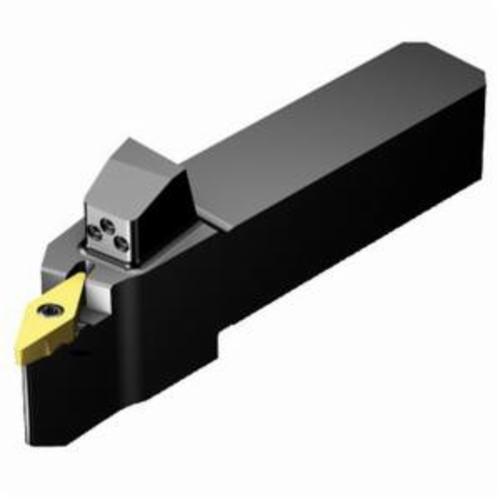

Sandvik Coromant 6766780 CoroTurn TR QS Turning Shank Tool, TR-VB1308 Insert, -3 deg Lead, Rectangle Shank, Right Hand
Custom_Product_Images_Illustration
Sandvik Coromant 6766780 CoroTurn TR QS Turning Shank Tool, TR-VB1308 Insert, -3 deg Lead, Rectangle Shank, Right Hand
SKU1253620
MFGR #6766780
$/ea
Sandvik Coromant Turning Shank Tool, Series: CoroTurn TR QS, 5.0393 in Overall Length, Rectangle Shank, 0.9842 in H x 0.9842 in W Shank, Insert Compatibility: TR-VB1308, 13 Insert Seat, Right Hand Cutting, -3 deg Lead Angle, ANSI Code: QS-TR-V13JBR 2525HP, ISO Code: QS-TR-V13JBR 2525HP, 0 deg Rake, Steel
Sandvik Coromant Turning Shank Tool, Series: CoroTurn TR QS, 5.0393 in Overall Length, Rectangle Shank, 0.9842 in H x 0.9842 in W Shank, Insert Compatibility: TR-VB1308, 13 Insert Seat, Right Hand Cutting, -3 deg Lead Angle, ANSI Code: QS-TR-V13JBR 2525HP, ISO Code: QS-TR-V13JBR 2525HP, 0 deg Rake, Steel
Alternate Catalog Number QS-TR-V13JBR 2525HP ANSI Code QS-TR-V13JBR 2525HP Back of Bar to Cutting Edge 25 mm H x 25 mm W Catalog Number 6766780 Country of Origin SE Gross Weight Per Pack 0.66000 lb Head Length CoroTurn® TR QS Inscribed Circle -3 deg Insert Seat Size 13 ISO Code QS-TR-V13JBR 2525HP Item Group 480 Material Steel Series CoroTurn TR QS Shank Type Rectangle Type QS-TR-V13JBR 2525HP Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Right Hand Insert Compatibility TR-VB1308 Lead Angle -3 deg Overall Length 5.0393 in Rake 0 deg Shank Size 0.9842 in H x 0.9842 in W Tool Holder Style 5758199 Key, 5758334 Key, 5763186 Insert Screw, 5764143 Key, 5764280 Nozzle, 6462139 Coolant Tube, 6465927 Stop Screw, 6465928 Stop Screw, 6727548 Coolant Screw and 6727621 Washer 20 life cycle state 0 deg body machine side 0 deg body workpiece side Axial concentric and radial entry 150 bar coolant 40 - 60 deg insert screw, rail bottom Decentral focused exit with nozzles 44 mm L head bottom offset 93 deg cutting edge 0 deg inclination 128 mm L functional 69 mm overhang 50 deg ramping V-35 deg diamond insert shape 13 mm insert seat 2 Nm torque QS-TR-V..R/L..HP tool style 25.5 mm W functional 25 mm H functional
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | QS-TR-V13JBR 2525HP |
| ANSI Code | QS-TR-V13JBR 2525HP |
| Back of Bar to Cutting Edge | 25 mm H x 25 mm W |
| Catalog Number | 6766780 |
| Country of Origin | SE |
| Gross Weight Per Pack | 0.66000 lb |
| Head Length | CoroTurn® TR QS |
| Inscribed Circle | -3 deg |
| Insert Seat Size | 13 |
| ISO Code | QS-TR-V13JBR 2525HP |
| Item Group | 480 |
| Material | Steel |
| Series | CoroTurn TR QS |
| Shank Type | Rectangle |
| Type | QS-TR-V13JBR 2525HP |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Right Hand |
| Insert Compatibility | TR-VB1308 |
| Lead Angle | -3 deg |
| Overall Length | 5.0393 in |
| Rake | 0 deg |
| Shank Size | 0.9842 in H x 0.9842 in W |
| Tool Holder Style | 5758199 Key, 5758334 Key, 5763186 Insert Screw, 5764143 Key, 5764280 Nozzle, 6462139 Coolant Tube, 6465927 Stop Screw, 6465928 Stop Screw, 6727548 Coolant Screw and 6727621 Washer |
| 20 life cycle state |
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric and radial entry |
| 150 bar coolant |
| 40 - 60 deg insert screw, rail bottom |
| Decentral focused exit with nozzles |
| 44 mm L head bottom offset |
| 93 deg cutting edge |
| 0 deg inclination |
| 128 mm L functional |
| 69 mm overhang |
| 50 deg ramping |
| V-35 deg diamond insert shape |
| 13 mm insert seat |
| 2 Nm torque |
| QS-TR-V..R/L..HP tool style |
| 25.5 mm W functional |
| 25 mm H functional |
