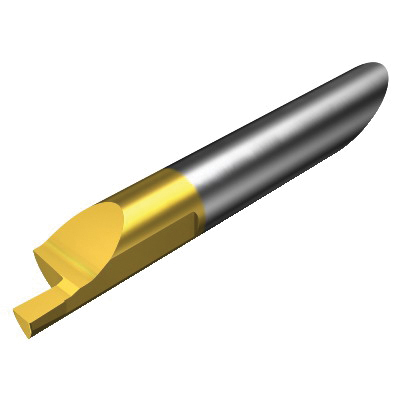

Sandvik Coromant 6765553 CoroTurn® XS Face Grooving Tool/Insert, CXS-06F200-6215BL 1025 ANSI, CXS..F..BR/L Insert, 1025
Custom_Product_Images_Illustration
Sandvik Coromant 6765553 CoroTurn® XS Face Grooving Tool/Insert, CXS-06F200-6215BL 1025 ANSI, CXS..F..BR/L Insert, 1025
SKU1253978
MFGR #6765553
Your Cost: $65.44/ea
List: Sandvik Coromant Face Grooving Tool/Insert, Series: CoroTurn® XS, CXS..F..BR/L Insert, 0.0787 in Cutting Width, 0.1574 in Maximum Depth of Cut, 0.0059 in Corner Radius, 0 deg Rake, 1.6732 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-06F200-6215BL 1025, ISO Code: CXS-06F200-6215BL 1025, Left Hand, Solid Carbide, PVD Coated, Material Grade: K/M/N/O/P/S
Sandvik Coromant Face Grooving Tool/Insert, Series: CoroTurn® XS, CXS..F..BR/L Insert, 0.0787 in Cutting Width, 0.1574 in Maximum Depth of Cut, 0.0059 in Corner Radius, 0 deg Rake, 1.6732 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-06F200-6215BL 1025, ISO Code: CXS-06F200-6215BL 1025, Left Hand, Solid Carbide, PVD Coated, Material Grade: K/M/N/O/P/S
Alternate Catalog Number CXS-06F200-6215BL 1025 ANSI Code CXS-06F200-6215BL 1025 Catalog Number 6765553 Country of Origin TH Finish PVD Coated Groove Width 2 Gross Weight Per Pack 0.0500 lb Hand of Insert Left Hole Diameter Solid Carbide ISO Code CXS-06F200-6215BL 1025 Item Group 325 Length 1.6732 in Material Grade K/M/N/O/P/S Maximum Hole Depth 15 Minimum Hole Diameter 2.2 Overall Length 42.5 Projection 18 Series CoroTurn® XS Shank Diameter 6 Shape 0.15 mm Thickness PVD Type Solid Carbide Width 4 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker CXS-06F200-6215BL 1025 Corner Radius 0.0059 in Cutting Direction Left Hand Insert Size 1025 Insert Style CXS..F..BR/L Lead Angle CoroTurn® XS Manufacturer's Grade 1025 Material Solid Carbide Maximum Depth of Cut 0.1574 in Rake 0 deg 2 axial groove support direction 20 life cycle state Without coolant entry 0 mm W cutting lower tolerance 0.05 mm cutting width upper tolerance No coolant exit 2.2 mm minimum axial groove ID 6 mm Dia connection 90 deg cutting edge 0 deg inclination 0 deg body workpiece side 37.3 mm L functional 18 mm maximum overhang -0.02 mm corner radius lower tolerance 0.02 mm corner radius upper tolerance 2.95 mm W functiona
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CXS-06F200-6215BL 1025 |
| ANSI Code | CXS-06F200-6215BL 1025 |
| Catalog Number | 6765553 |
| Country of Origin | TH |
| Finish | PVD Coated |
| Groove Width | 2 |
| Gross Weight Per Pack | 0.0500 lb |
| Hand of Insert | Left |
| Hole Diameter | Solid Carbide |
| ISO Code | CXS-06F200-6215BL 1025 |
| Item Group | 325 |
| Length | 1.6732 in |
| Material Grade | K/M/N/O/P/S |
| Maximum Hole Depth | 15 |
| Minimum Hole Diameter | 2.2 |
| Overall Length | 42.5 |
| Projection | 18 |
| Series | CoroTurn® XS |
| Shank Diameter | 6 |
| Shape | 0.15 mm |
| Thickness | PVD |
| Type | Solid Carbide |
| Width | 4 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | CXS-06F200-6215BL 1025 |
| Corner Radius | 0.0059 in |
| Cutting Direction | Left Hand |
| Insert Size | 1025 |
| Insert Style | CXS..F..BR/L |
| Lead Angle | CoroTurn® XS |
| Manufacturer's Grade | 1025 |
| Material | Solid Carbide |
| Maximum Depth of Cut | 0.1574 in |
| Rake | 0 deg |
| 2 axial groove support direction |
| 20 life cycle state |
| Without coolant entry |
| 0 mm W cutting lower tolerance |
| 0.05 mm cutting width upper tolerance |
| No coolant exit |
| 2.2 mm minimum axial groove ID |
| 6 mm Dia connection |
| 90 deg cutting edge |
| 0 deg inclination |
| 0 deg body workpiece side |
| 37.3 mm L functional |
| 18 mm maximum overhang |
| -0.02 mm corner radius lower tolerance |
| 0.02 mm corner radius upper tolerance |
| 2.95 mm W functiona |
