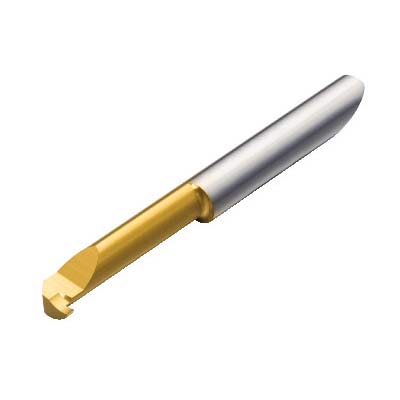

Sandvik Coromant 6765515 CoroTurn® XS Grooving Tool/Insert, CXS-07G117-7230L 1025, CXS-xxG Insert, 0.046 in W Cutting, 1025, CXS-07G117-7230L 1025
Custom_Product_Images_Illustration
Sandvik Coromant 6765515 CoroTurn® XS Grooving Tool/Insert, CXS-07G117-7230L 1025, CXS-xxG Insert, 0.046 in W Cutting, 1025, CXS-07G117-7230L 1025
SKU1253377
MFGR #6765515
$/ea
Sandvik Coromant Grooving Tool/Insert, Series: CoroTurn® XS, CXS-xxG Insert, 0.046 in Cutting Width, 0.0984 in Maximum Depth of Cut, 0 deg Lead Angle, 0.008 in Corner Radius, 2.1763 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-07G117-7230L 1025, ISO Code: CXS-07G117-7230L 1025, Left Hand, Solid Carbide, PVD Coated, Material Grade: M/N/O/P/S
Sandvik Coromant Grooving Tool/Insert, Series: CoroTurn® XS, CXS-xxG Insert, 0.046 in Cutting Width, 0.0984 in Maximum Depth of Cut, 0 deg Lead Angle, 0.008 in Corner Radius, 2.1763 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-07G117-7230L 1025, ISO Code: CXS-07G117-7230L 1025, Left Hand, Solid Carbide, PVD Coated, Material Grade: M/N/O/P/S
ANSI Code CXS-07G117-7230L 1025 Catalog Number 6765515 Country of Origin TH Finish PVD Coated Gross Weight Per Pack 0.0600 lb Hand of Insert Left Hole Diameter Solid Carbide ISO Code CXS-07G117-7230L 1025 Length 2.1763 in Material Grade M/N/O/P/S Series CoroTurn® XS Shape CoroTurn® XS Thickness Left Type 0.008 in Width 55.28 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Chipbreaker 2.5 mm Corner Radius 0.008 in Insert Size PVD Insert Style CXS-xxG Lead Angle 0 deg Manufacturer's Grade 1025 Material Solid Carbide Maximum Depth of Cut 0.0984 in Rake 0 deg 4 deg clearance 20 life cycle state 90 deg body workpiece side 0.04 mm W chamfer Without coolant entry 0 mm W cutting lower tolerance 0.05 mm W cutting upper tolerance No coolant exit 7 mm Dia connection 7.2 mm Dia minimum bore 90 deg cutting edge 45 deg corner chamfer 52.25 mm L functional 30 mm L usable 29.415 mm L to cutting item reference point 33 mm maximum overhang 2 deg relief 4.25 mm W body 3.45 mm W functional 1 edge
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | CXS-07G117-7230L 1025 |
| Catalog Number | 6765515 |
| Country of Origin | TH |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0600 lb |
| Hand of Insert | Left |
| Hole Diameter | Solid Carbide |
| ISO Code | CXS-07G117-7230L 1025 |
| Length | 2.1763 in |
| Material Grade | M/N/O/P/S |
| Series | CoroTurn® XS |
| Shape | CoroTurn® XS |
| Thickness | Left |
| Type | 0.008 in |
| Width | 55.28 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Chipbreaker | 2.5 mm |
| Corner Radius | 0.008 in |
| Insert Size | PVD |
| Insert Style | CXS-xxG |
| Lead Angle | 0 deg |
| Manufacturer's Grade | 1025 |
| Material | Solid Carbide |
| Maximum Depth of Cut | 0.0984 in |
| Rake | 0 deg |
| 4 deg clearance |
| 20 life cycle state |
| 90 deg body workpiece side |
| 0.04 mm W chamfer |
| Without coolant entry |
| 0 mm W cutting lower tolerance |
| 0.05 mm W cutting upper tolerance |
| No coolant exit |
| 7 mm Dia connection |
| 7.2 mm Dia minimum bore |
| 90 deg cutting edge |
| 45 deg corner chamfer |
| 52.25 mm L functional |
| 30 mm L usable |
| 29.415 mm L to cutting item reference point |
| 33 mm maximum overhang |
| 2 deg relief |
| 4.25 mm W body |
| 3.45 mm W functional |
| 1 edge |
