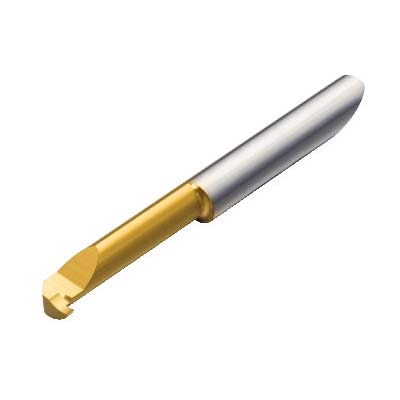

Sandvik Coromant 6765505 CoroTurn® XS Grooving Tool/Insert, CXS-07G100-7230R 1025, CXS-xxG Insert, 0.0393 in W Cutting, 1025, CXS-07G100-7230R 1025
Custom_Product_Images_Illustration
Sandvik Coromant 6765505 CoroTurn® XS Grooving Tool/Insert, CXS-07G100-7230R 1025, CXS-xxG Insert, 0.0393 in W Cutting, 1025, CXS-07G100-7230R 1025
SKU1253293
MFGR #6765505
$/ea
Sandvik Coromant Grooving Tool/Insert, Series: CoroTurn® XS, CXS-xxG Insert, 0.0393 in Cutting Width, 0.0984 in Maximum Depth of Cut, 0 deg Lead Angle, 0.008 in Corner Radius, 2.1763 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-07G100-7230R 1025, ISO Code: CXS-07G100-7230R 1025, Right Hand, Solid Carbide, PVD Coated, Material Grade: M/N/O/P/S
Sandvik Coromant Grooving Tool/Insert, Series: CoroTurn® XS, CXS-xxG Insert, 0.0393 in Cutting Width, 0.0984 in Maximum Depth of Cut, 0 deg Lead Angle, 0.008 in Corner Radius, 2.1763 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-07G100-7230R 1025, ISO Code: CXS-07G100-7230R 1025, Right Hand, Solid Carbide, PVD Coated, Material Grade: M/N/O/P/S
Alternate Catalog Number CXS-07G100-7230R 1025 ANSI Code CXS-07G100-7230R 1025 Catalog Number 6765505 Country of Origin TH Finish PVD Coated Gross Weight Per Pack 0.0600 lb Hand of Insert Right Hole Diameter Solid Carbide ISO Code CXS-07G100-7230R 1025 Item Group 325 Length 2.1763 in Material Grade M/N/O/P/S Series CoroTurn® XS Shape Solid Carbide Thickness CXS-07G100-7230R 1025 Type 1025 Width M, N, O, P, S Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker 0.008 in Corner Radius 0.008 in Insert Size 0 deg Insert Style CXS-xxG Lead Angle 0 deg Manufacturer's Grade 1025 Material Solid Carbide Maximum Depth of Cut 0.0984 in Rake 1 mm 4 deg clearance 20 life cycle state 90 deg body workpiece side 0.04 mm W chamfer Without coolant entry 0 mm W cutting lower tolerance 0.05 mm W cutting upper tolerance No coolant exit 7 mm Dia connection 7.2 mm Dia minimum bore 90 deg cutting edge 45 deg corner chamfer 52.25 mm L functional 30 mm L usable 29.5 mm L to cutting item reference point 33 mm maximum overhang 2 deg relief 4.25 mm W body 3.45 mm W functional 1 edge
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CXS-07G100-7230R 1025 |
| ANSI Code | CXS-07G100-7230R 1025 |
| Catalog Number | 6765505 |
| Country of Origin | TH |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0600 lb |
| Hand of Insert | Right |
| Hole Diameter | Solid Carbide |
| ISO Code | CXS-07G100-7230R 1025 |
| Item Group | 325 |
| Length | 2.1763 in |
| Material Grade | M/N/O/P/S |
| Series | CoroTurn® XS |
| Shape | Solid Carbide |
| Thickness | CXS-07G100-7230R 1025 |
| Type | 1025 |
| Width | M, N, O, P, S |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | 0.008 in |
| Corner Radius | 0.008 in |
| Insert Size | 0 deg |
| Insert Style | CXS-xxG |
| Lead Angle | 0 deg |
| Manufacturer's Grade | 1025 |
| Material | Solid Carbide |
| Maximum Depth of Cut | 0.0984 in |
| Rake | 1 mm |
| 4 deg clearance |
| 20 life cycle state |
| 90 deg body workpiece side |
| 0.04 mm W chamfer |
| Without coolant entry |
| 0 mm W cutting lower tolerance |
| 0.05 mm W cutting upper tolerance |
| No coolant exit |
| 7 mm Dia connection |
| 7.2 mm Dia minimum bore |
| 90 deg cutting edge |
| 45 deg corner chamfer |
| 52.25 mm L functional |
| 30 mm L usable |
| 29.5 mm L to cutting item reference point |
| 33 mm maximum overhang |
| 2 deg relief |
| 4.25 mm W body |
| 3.45 mm W functional |
| 1 edge |
