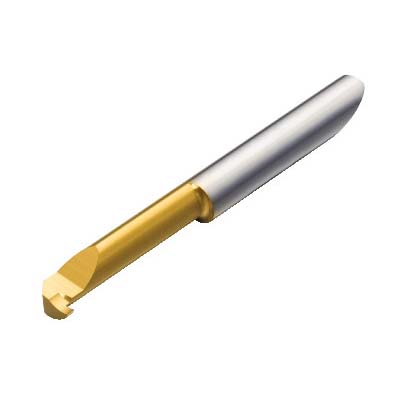

Sandvik Coromant 6765471 CoroTurn® XS Grooving Tool/Insert, CXS-06G117-6240R 1025 ANSI, CXS-xxG Insert, 0.046 in W Cutting
Custom_Product_Images_Illustration
Sandvik Coromant 6765471 CoroTurn® XS Grooving Tool/Insert, CXS-06G117-6240R 1025 ANSI, CXS-xxG Insert, 0.046 in W Cutting
SKU1253910
MFGR #6765471
$/ea
Sandvik Coromant Grooving Tool/Insert, Series: CoroTurn® XS, CXS-xxG Insert, 0.046 in Cutting Width, 0.0708 in Maximum Depth of Cut, 0 deg Lead Angle, 0.008 in Corner Radius, 2.5531 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-06G117-6240R 1025, ISO Code: CXS-06G117-6240R 1025, Right Hand, Solid Carbide, PVD Coated, Material Grade: M/N/O/P/S
Sandvik Coromant Grooving Tool/Insert, Series: CoroTurn® XS, CXS-xxG Insert, 0.046 in Cutting Width, 0.0708 in Maximum Depth of Cut, 0 deg Lead Angle, 0.008 in Corner Radius, 2.5531 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-06G117-6240R 1025, ISO Code: CXS-06G117-6240R 1025, Right Hand, Solid Carbide, PVD Coated, Material Grade: M/N/O/P/S
Alternate Catalog Number CXS-06G117-6240R 1025 ANSI Code CXS-06G117-6240R 1025 Catalog Number 6765471 Country of Origin TH Finish PVD Coated Gross Weight Per Pack 0.0500 lb Hand of Insert Right Hole Diameter Solid Carbide ISO Code CXS-06G117-6240R 1025 Item Group 325 Length 2.5531 in Material Grade M/N/O/P/S Series CoroTurn® XS Shape 1025 Thickness 1.17 mm Type CXS-06G117-6240R 1025 Width Right Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PVD Corner Radius 0.008 in Insert Size 1.8 mm Insert Style CXS-xxG Lead Angle 0 deg Manufacturer's Grade M, N, O, P, S Material Solid Carbide Maximum Depth of Cut 0.0708 in Rake M, N, O, P, S 4 deg clearance 20 life cycle state 90 deg body workpiece side 0.04 mm W chamfer Without coolant entry 0 mm W cutting lower tolerance 0.05 mm W cutting upper tolerance No coolant exit 6 mm Dia connection 6.2 mm Dia minimum bore 90 deg cutting edge 45 deg corner chamfer 62.25 mm L functional 40 mm L usable 39.415 mm L to cutting item reference point 43 mm maximum overhang 2 deg relief 3.95 mm W body 2.95 mm W functional 1 edge
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CXS-06G117-6240R 1025 |
| ANSI Code | CXS-06G117-6240R 1025 |
| Catalog Number | 6765471 |
| Country of Origin | TH |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0500 lb |
| Hand of Insert | Right |
| Hole Diameter | Solid Carbide |
| ISO Code | CXS-06G117-6240R 1025 |
| Item Group | 325 |
| Length | 2.5531 in |
| Material Grade | M/N/O/P/S |
| Series | CoroTurn® XS |
| Shape | 1025 |
| Thickness | 1.17 mm |
| Type | CXS-06G117-6240R 1025 |
| Width | Right |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PVD |
| Corner Radius | 0.008 in |
| Insert Size | 1.8 mm |
| Insert Style | CXS-xxG |
| Lead Angle | 0 deg |
| Manufacturer's Grade | M, N, O, P, S |
| Material | Solid Carbide |
| Maximum Depth of Cut | 0.0708 in |
| Rake | M, N, O, P, S |
| 4 deg clearance |
| 20 life cycle state |
| 90 deg body workpiece side |
| 0.04 mm W chamfer |
| Without coolant entry |
| 0 mm W cutting lower tolerance |
| 0.05 mm W cutting upper tolerance |
| No coolant exit |
| 6 mm Dia connection |
| 6.2 mm Dia minimum bore |
| 90 deg cutting edge |
| 45 deg corner chamfer |
| 62.25 mm L functional |
| 40 mm L usable |
| 39.415 mm L to cutting item reference point |
| 43 mm maximum overhang |
| 2 deg relief |
| 3.95 mm W body |
| 2.95 mm W functional |
| 1 edge |
