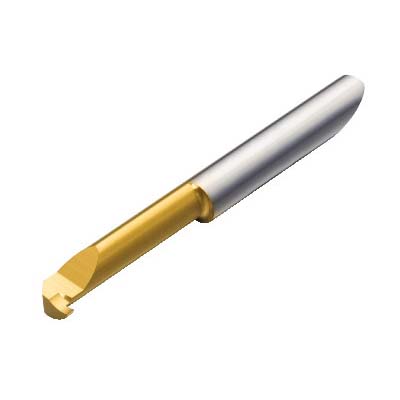

Sandvik Coromant 6765463 CoroTurn® XS Grooving Tool/Insert, CXS-06G100-6240R 1025, CXS-xxG Insert, 0.0393 in W Cutting, 1025, CXS-06G100-6240R 1025
Custom_Product_Images_Illustration
Sandvik Coromant 6765463 CoroTurn® XS Grooving Tool/Insert, CXS-06G100-6240R 1025, CXS-xxG Insert, 0.0393 in W Cutting, 1025, CXS-06G100-6240R 1025
SKU1253955
MFGR #6765463
$/ea
Sandvik Coromant Grooving Tool/Insert, Series: CoroTurn® XS, CXS-xxG Insert, 0.0393 in Cutting Width, 0.0708 in Maximum Depth of Cut, 0 deg Lead Angle, 0.008 in Corner Radius, 2.5531 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-06G100-6240R 1025, ISO Code: CXS-06G100-6240R 1025, Right Hand, Solid Carbide, PVD Coated, Material Grade: M/N/O/P/S
Sandvik Coromant Grooving Tool/Insert, Series: CoroTurn® XS, CXS-xxG Insert, 0.0393 in Cutting Width, 0.0708 in Maximum Depth of Cut, 0 deg Lead Angle, 0.008 in Corner Radius, 2.5531 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-06G100-6240R 1025, ISO Code: CXS-06G100-6240R 1025, Right Hand, Solid Carbide, PVD Coated, Material Grade: M/N/O/P/S
Alternate Catalog Number CXS-06G100-6240R 1025 ANSI Code CXS-06G100-6240R 1025 Catalog Number 6765463 Country of Origin TH Finish PVD Coated Groove Width 1 Gross Weight Per Pack 0.0500 lb Hand of Insert Right Hole Diameter Solid Carbide ISO Code CXS-06G100-6240R 1025 Item Group 325 Length 2.5531 in Material Grade M/N/O/P/S Maximum Hole Depth 40 Minimum Hole Diameter 6.2 Overall Length 64.85 Projection 43 Series CoroTurn® XS Shank Diameter 6 Shape 1.8 mm Thickness 0 deg Type PVD Width 0.008 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker 1025 Corner Radius 0.008 in Cutting Direction Right Hand Insert Size Right Insert Style CXS-xxG Lead Angle 0 deg Manufacturer's Grade M, N, O, P, S Material Solid Carbide Maximum Depth of Cut 0.0708 in Rake Solid Carbide 4 deg clearance 20 life cycle state 90 deg body workpiece side 0.04 mm W chamfer Without coolant entry 0 mm W cutting lower tolerance 0.05 mm W cutting upper tolerance No coolant exit 6 mm Dia connection 6.2 mm Dia minimum bore 90 deg cutting edge 45 deg corner chamfer 62.25 mm L functional 40 mm L usable 39.5 mm L to cutting item reference point 43 mm maximum overhang 2 deg relief 3.95 mm W body 2.95 mm W functional 1 edge
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CXS-06G100-6240R 1025 |
| ANSI Code | CXS-06G100-6240R 1025 |
| Catalog Number | 6765463 |
| Country of Origin | TH |
| Finish | PVD Coated |
| Groove Width | 1 |
| Gross Weight Per Pack | 0.0500 lb |
| Hand of Insert | Right |
| Hole Diameter | Solid Carbide |
| ISO Code | CXS-06G100-6240R 1025 |
| Item Group | 325 |
| Length | 2.5531 in |
| Material Grade | M/N/O/P/S |
| Maximum Hole Depth | 40 |
| Minimum Hole Diameter | 6.2 |
| Overall Length | 64.85 |
| Projection | 43 |
| Series | CoroTurn® XS |
| Shank Diameter | 6 |
| Shape | 1.8 mm |
| Thickness | 0 deg |
| Type | PVD |
| Width | 0.008 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | 1025 |
| Corner Radius | 0.008 in |
| Cutting Direction | Right Hand |
| Insert Size | Right |
| Insert Style | CXS-xxG |
| Lead Angle | 0 deg |
| Manufacturer's Grade | M, N, O, P, S |
| Material | Solid Carbide |
| Maximum Depth of Cut | 0.0708 in |
| Rake | Solid Carbide |
| 4 deg clearance |
| 20 life cycle state |
| 90 deg body workpiece side |
| 0.04 mm W chamfer |
| Without coolant entry |
| 0 mm W cutting lower tolerance |
| 0.05 mm W cutting upper tolerance |
| No coolant exit |
| 6 mm Dia connection |
| 6.2 mm Dia minimum bore |
| 90 deg cutting edge |
| 45 deg corner chamfer |
| 62.25 mm L functional |
| 40 mm L usable |
| 39.5 mm L to cutting item reference point |
| 43 mm maximum overhang |
| 2 deg relief |
| 3.95 mm W body |
| 2.95 mm W functional |
| 1 edge |
