Sandvik Coromant

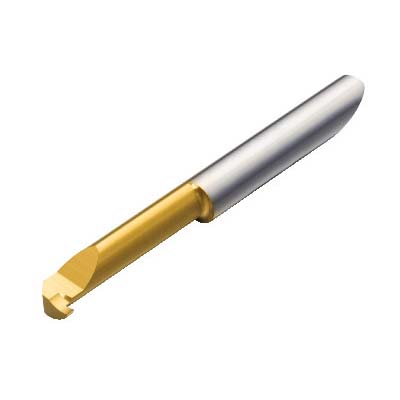

Sandvik Coromant 6765454 CoroTurn® XS Grooving Tool/Insert, CXS-06G078-6225L 1025, CXS-xxG Insert, 0.0307 in W Cutting, 1025, CXS-06G078-6225L 1025
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6765454 CoroTurn® XS Grooving Tool/Insert, CXS-06G078-6225L 1025, CXS-xxG Insert, 0.0307 in W Cutting, 1025, CXS-06G078-6225L 1025
SKU1253898
MFGR #6765454
$/ea
Sandvik Coromant Grooving Tool/Insert, Series: CoroTurn® XS, CXS-xxG Insert, 0.0307 in Cutting Width, 0.0708 in Maximum Depth of Cut, 0 deg Lead Angle, 0.008 in Corner Radius, 1.9626 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-06G078-6225L 1025, ISO Code: CXS-06G078-6225L 1025, Left Hand, Solid Carbide, PVD Coated, Material Grade: M/N/O/P/S
Sandvik Coromant Grooving Tool/Insert, Series: CoroTurn® XS, CXS-xxG Insert, 0.0307 in Cutting Width, 0.0708 in Maximum Depth of Cut, 0 deg Lead Angle, 0.008 in Corner Radius, 1.9626 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-06G078-6225L 1025, ISO Code: CXS-06G078-6225L 1025, Left Hand, Solid Carbide, PVD Coated, Material Grade: M/N/O/P/S
ANSI Code CXS-06G078-6225L 1025 Catalog Number 6765454 Country of Origin TH Finish PVD Coated Groove Width 0.78 Gross Weight Per Pack 0.0500 lb Hand of Insert Left Hole Diameter Solid Carbide ISO Code CXS-06G078-6225L 1025 Length 1.9626 in Material Grade M/N/O/P/S Maximum Hole Depth 25 Minimum Hole Diameter 6.2 Overall Length 49.85 Projection 28 Series CoroTurn® XS Shank Diameter 6 Shape Solid Carbide Thickness CXS-xxG Type Left Width 1.8 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Chipbreaker M, N, O, P, S Corner Radius 0.008 in Cutting Direction Left Hand Insert Size PVD Insert Style CXS-xxG Lead Angle 0 deg Manufacturer's Grade 1025 Material Solid Carbide Maximum Depth of Cut 0.0708 in Rake 0.008 in 4 deg clearance 20 life cycle state 90 deg body workpiece side 0.04 mm W chamfer Without coolant entry 0 mm W cutting lower tolerance 0.05 mm W cutting upper tolerance No coolant exit 6 mm Dia connection 6.2 mm Dia minimum bore 90 deg cutting edge 45 deg corner chamfer 47.25 mm L functional 25 mm L usable 24.61 mm L to cutting item reference point 28 mm maximum overhang 2 deg relief 3.95 mm W body 2.95 mm W functional 1 edge
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | CXS-06G078-6225L 1025 |
| Catalog Number | 6765454 |
| Country of Origin | TH |
| Finish | PVD Coated |
| Groove Width | 0.78 |
| Gross Weight Per Pack | 0.0500 lb |
| Hand of Insert | Left |
| Hole Diameter | Solid Carbide |
| ISO Code | CXS-06G078-6225L 1025 |
| Length | 1.9626 in |
| Material Grade | M/N/O/P/S |
| Maximum Hole Depth | 25 |
| Minimum Hole Diameter | 6.2 |
| Overall Length | 49.85 |
| Projection | 28 |
| Series | CoroTurn® XS |
| Shank Diameter | 6 |
| Shape | Solid Carbide |
| Thickness | CXS-xxG |
| Type | Left |
| Width | 1.8 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Chipbreaker | M, N, O, P, S |
| Corner Radius | 0.008 in |
| Cutting Direction | Left Hand |
| Insert Size | PVD |
| Insert Style | CXS-xxG |
| Lead Angle | 0 deg |
| Manufacturer's Grade | 1025 |
| Material | Solid Carbide |
| Maximum Depth of Cut | 0.0708 in |
| Rake | 0.008 in |
| 4 deg clearance |
| 20 life cycle state |
| 90 deg body workpiece side |
| 0.04 mm W chamfer |
| Without coolant entry |
| 0 mm W cutting lower tolerance |
| 0.05 mm W cutting upper tolerance |
| No coolant exit |
| 6 mm Dia connection |
| 6.2 mm Dia minimum bore |
| 90 deg cutting edge |
| 45 deg corner chamfer |
| 47.25 mm L functional |
| 25 mm L usable |
| 24.61 mm L to cutting item reference point |
| 28 mm maximum overhang |
| 2 deg relief |
| 3.95 mm W body |
| 2.95 mm W functional |
| 1 edge |
