Sandvik Coromant

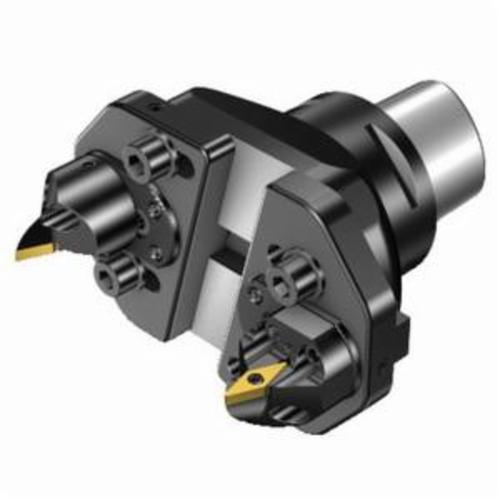

Sandvik Coromant 6764276 CoroBore® XL, C8 System, Right Hand, VBMT 16 04 08 Insert, 7.7952 in W Min Groove
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6764276 CoroBore® XL, C8 System, Right Hand, VBMT 16 04 08 Insert, 7.7952 in W Min Groove
SKU1252207
MFGR #6764276
$/ea
Sandvik Coromant Adjustable Tool, Series: CoroBore® XL, System Size: C8, Right Hand Cutting, Insert Compatibility: VBMT 16 04 08, 7.7952 in Minimum Groove Width, 1/2 in Maximum Depth of Cut, 5.2362 in Head Length, Steel
Sandvik Coromant Adjustable Tool, Series: CoroBore® XL, System Size: C8, Right Hand Cutting, Insert Compatibility: VBMT 16 04 08, 7.7952 in Minimum Groove Width, 1/2 in Maximum Depth of Cut, 5.2362 in Head Length, Steel
Catalog Number 6764276 Country of Origin NL Geometry Right Hand Gross Weight Per Pack 21.9100 lb Head Length 5.2362 in Material Steel Series CoroBore® XL System Size C8 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Center to Cutting Edge CoroBore® XL Cutting Direction Right Hand Insert Compatibility VBMT 16 04 08 Maximum Depth of Cut 1/2 in Minimum Groove Width 7.7952 in Type 5757635, 5758193, 5758199, 5758334, 5758337, 5764130 Key, 6764267 Slide, 6764270 Cartridge, 6764272 Adaptor and 6806366 Cartridge Bolt and segment clamping machine side adaptive interface 0.1 mm adjustment increment 45.8 mm adjustment increment 2 cutting items Axial concentric and radial coolant entry 80 bar coolant 40 - 60 deg insert screw clamping cutting item interface Axial concentric exit 289.6 mm Dia maximum internal cutting 80 mm Dia connection Multi-edge spiral groove boring 0 deg orthogonal rake 67 deg cutting edge 0 deg inclination 15 mm L usable 104 mm H 181 mm OAL 282 mm W 75 deg ramping 1500 r/min
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | 6764276 |
| Country of Origin | NL |
| Geometry | Right Hand |
| Gross Weight Per Pack | 21.9100 lb |
| Head Length | 5.2362 in |
| Material | Steel |
| Series | CoroBore® XL |
| System Size | C8 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Center to Cutting Edge | CoroBore® XL |
| Cutting Direction | Right Hand |
| Insert Compatibility | VBMT 16 04 08 |
| Maximum Depth of Cut | 1/2 in |
| Minimum Groove Width | 7.7952 in |
| Type | 5757635, 5758193, 5758199, 5758334, 5758337, 5764130 Key, 6764267 Slide, 6764270 Cartridge, 6764272 Adaptor and 6806366 Cartridge |
| Bolt and segment clamping machine side adaptive interface |
| 0.1 mm adjustment increment |
| 45.8 mm adjustment increment |
| 2 cutting items |
| Axial concentric and radial coolant entry |
| 80 bar coolant |
| 40 - 60 deg insert screw clamping cutting item interface |
| Axial concentric exit |
| 289.6 mm Dia maximum internal cutting |
| 80 mm Dia connection |
| Multi-edge spiral groove boring |
| 0 deg orthogonal rake |
| 67 deg cutting edge |
| 0 deg inclination |
| 15 mm L usable |
| 104 mm H |
| 181 mm OAL |
| 282 mm W |
| 75 deg ramping |
| 1500 r/min |
