Sandvik Coromant

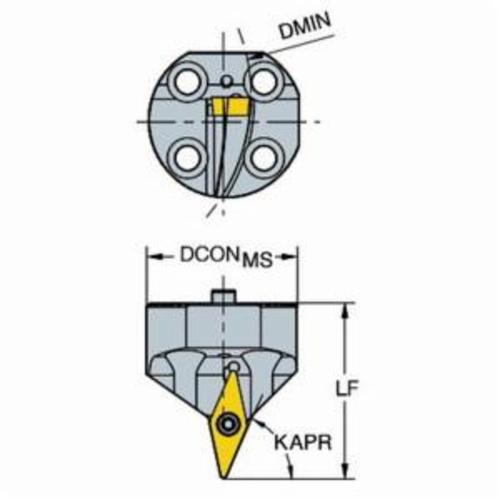

Sandvik Coromant 6764269 CoroTurn® 107 Turning Head, 1.7716 in, 1.9212 in OAL, Right Hand, VBMT 160408 and VBMT 332 Insert
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 6764269 CoroTurn® 107 Turning Head, 1.7716 in, 1.9212 in OAL, Right Hand, VBMT 160408 and VBMT 332 Insert
SKU1243726
MFGR #6764269
$/ea
Sandvik Coromant Turning Head, Series: CoroTurn® 107, 1.7716 in Head Length/Projection, 1.9212 in Overall Length, Insert Compatibility: VBMT 160408 and VBMT 332, Right Hand Cutting, Steel
Sandvik Coromant Turning Head, Series: CoroTurn® 107, 1.7716 in Head Length/Projection, 1.9212 in Overall Length, Insert Compatibility: VBMT 160408 and VBMT 332, Right Hand Cutting, Steel
Catalog Number 6764269 Center to Cutting Height 15 mm Country of Origin DE Gross Weight Per Pack 0.3900 lb Head Length|Projection 45 mm Insert Style VBMT/VCMT Material Steel Overall Length 48.8 mm Series CoroTurn® 107 Standards ISO: VBMT 160408/VCMT 160408 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer SANDVIK COROMANT CO Cutting Direction Right Hand Insert Compatibility VBMT 160408, VCMT 160408 Insert Holding Method Screw Clamp System Size 40A Unobstructed chip flow|Excellent chip control|Exceptional surface finish 0 deg body 40 mm Dia body Axial concentric coolant entry 70 bar coolant 40 - 60 deg insert screw clamping Axial concentric on circle coolant exit 40 mm Dia connection 50 mm Dia bore 0 deg orthogonal rake 6 mm H functional 67 deg cutting edge 0 deg inclination 12.5 mm L usable 23 deg lead 75 deg ramping V - 35 deg diamond 16 mm insert seat size 3 Nm torque For 820-139VB16-C6, 820-139VB16X-C8, 820-139VB16X-C6 and 820-139VB16-C8 CoroBore® XL adjustable tool for SpiroGrooving™
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 6764269 |
| Center to Cutting Height | 15 mm |
| Country of Origin | DE |
| Gross Weight Per Pack | 0.3900 lb |
| Head Length|Projection | 45 mm |
| Insert Style | VBMT/VCMT |
| Material | Steel |
| Overall Length | 48.8 mm |
| Series | CoroTurn® 107 |
| Standards | ISO: VBMT 160408/VCMT 160408 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | SANDVIK COROMANT CO |
| Cutting Direction | Right Hand |
| Insert Compatibility | VBMT 160408, VCMT 160408 |
| Insert Holding Method | Screw Clamp |
| System Size | 40A |
| Unobstructed chip flow|Excellent chip control|Exceptional surface finish |
| 0 deg body |
| 40 mm Dia body |
| Axial concentric coolant entry |
| 70 bar coolant |
| 40 - 60 deg insert screw clamping |
| Axial concentric on circle coolant exit |
| 40 mm Dia connection |
| 50 mm Dia bore |
| 0 deg orthogonal rake |
| 6 mm H functional |
| 67 deg cutting edge |
| 0 deg inclination |
| 12.5 mm L usable |
| 23 deg lead |
| 75 deg ramping |
| V - 35 deg diamond |
| 16 mm insert seat size |
| 3 Nm torque |
| For 820-139VB16-C6, 820-139VB16X-C8, 820-139VB16X-C6 and 820-139VB16-C8 CoroBore® XL adjustable tool for SpiroGrooving™ |
