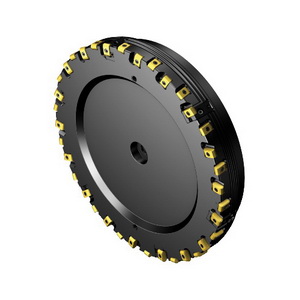

Sandvik Coromant 6717992 CoroMill® 425 Cap Mount Face Milling Cutter, 15.748 to 16.024 in Cutting, 13.923 in Shank, 2.48 in OAL, 0.035 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 6717992 CoroMill® 425 Cap Mount Face Milling Cutter, 15.748 to 16.024 in Cutting, 13.923 in Shank, 2.48 in OAL, 0.035 in Max Depth of Cut
SKU1244442
MFGR #6717992
$/ea
Sandvik Coromant Face Milling Cutter, Cap Mount, Series: CoroMill® 425, 15.748 to 16.024 in Cutting Dia, 2.48 in Overall Length, 0.035 in Maximum Depth of Cut, 13.923 in Shank Dia, Left Hand Cutting, 25 deg Cutting Angle, ANSI Code: L425-400P-17H, ISO Code: L425-400P-17H, Steel
Sandvik Coromant Face Milling Cutter, Cap Mount, Series: CoroMill® 425, 15.748 to 16.024 in Cutting Dia, 2.48 in Overall Length, 0.035 in Maximum Depth of Cut, 13.923 in Shank Dia, Left Hand Cutting, 25 deg Cutting Angle, ANSI Code: L425-400P-17H, ISO Code: L425-400P-17H, Steel
Alternate Catalog Number L425-400P-17H ANSI Code L425-400P-17H Catalog Number 6717992 Country of Origin US Gross Weight Per Pack 65.0400 lb ISO Code L425-400P-17H Item Group 230 Lead Angle 25 ° Material Steel Series CoroMill® 425 Type Cap Mount Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 13.9232 in Cutting Angle 25 ° Cutting Diameter 15.748 to 16.024 in Cutting Direction Left Hand Maximum Depth of Cut 0.035 in Number of Inserts 27 Overall Length 2.48 in Shank Diameter 13.9232 in Shank Type Cap Mounting Through Coolant No External coolant CoroMill 425 size 17 cutting item interface identifiers 13.923 in Dia connection 0 deg ramping External coolant 2.213 ft-lb torque CoroMill 425 size 17 cutting item interface identifiers 27 Peripheral effective cutting edge 2.48 in L body 15.791 in Dia body 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | L425-400P-17H |
| ANSI Code | L425-400P-17H |
| Catalog Number | 6717992 |
| Country of Origin | US |
| Gross Weight Per Pack | 65.0400 lb |
| ISO Code | L425-400P-17H |
| Item Group | 230 |
| Lead Angle | 25 ° |
| Material | Steel |
| Series | CoroMill® 425 |
| Type | Cap Mount |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 13.9232 in |
| Cutting Angle | 25 ° |
| Cutting Diameter | 15.748 to 16.024 in |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut | 0.035 in |
| Number of Inserts | 27 |
| Overall Length | 2.48 in |
| Shank Diameter | 13.9232 in |
| Shank Type | Cap Mounting |
| Through Coolant | No |
| External coolant |
| CoroMill 425 size 17 cutting item interface identifiers |
| 13.923 in Dia connection |
| 0 deg ramping |
| External coolant |
| 2.213 ft-lb torque |
| CoroMill 425 size 17 cutting item interface identifiers |
| 27 Peripheral effective cutting edge |
| 2.48 in L body |
| 15.791 in Dia body |
| 20 life cycle state |
