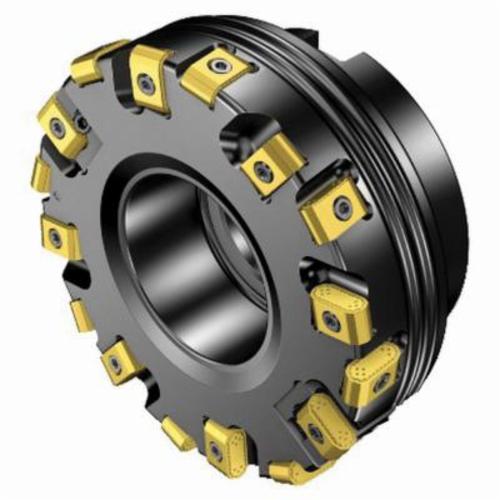

Sandvik Coromant 6717899 CoroMill® 425 Face Milling Cutter, 8 in Cutting, 2-1/2 in Shank, 2.4803 in OAL, A425..Rxx Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6717899 CoroMill® 425 Face Milling Cutter, 8 in Cutting, 2-1/2 in Shank, 2.4803 in OAL, A425..Rxx Insert
SKU1237602
MFGR #6717899
Your Cost: $5,865.46/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 425, 8 in Cutting Dia, 2.4803 in Overall Length, 0.0354 in Maximum Depth of Cut, A425..Rxx Insert, 24 Inserts, Insert Compatibility: 425N-1707, 2-1/2 in Shank Dia, Right Hand Cutting, 25 deg Cutting Angle, ANSI Code: A425-203R63-17H, ISO Code: A425-203R63-17H, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 425, 8 in Cutting Dia, 2.4803 in Overall Length, 0.0354 in Maximum Depth of Cut, A425..Rxx Insert, 24 Inserts, Insert Compatibility: 425N-1707, 2-1/2 in Shank Dia, Right Hand Cutting, 25 deg Cutting Angle, ANSI Code: A425-203R63-17H, ISO Code: A425-203R63-17H, Steel
Alternate Catalog Number A425-203R63-17H ANSI Code A425-203R63-17H Catalog Number 6717899 Country of Origin SE Gross Weight Per Pack 2.2000 lb ISO Code A425-203R63-17H Item Group 230 Lead Angle 25 ° Material Steel Series CoroMill® 425 Standards ISO 6462:2011 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 2-1/2 in Cutting Angle 25 ° Cutting Diameter 8 in Cutting Direction Right Hand Insert Compatibility 425N-1707 Insert Style A425..Rxx Maximum Depth of Cut 0.0354 in Number of Inserts 24 Overall Length 2.4803 in Shank Diameter 2-1/2 in Shank Type CIS Arbor Through Coolant No Without coolant entry On edge screw (through side of insert) 4-bolt adaptive interface On edge screw (through side of insert) 2350 r/min 20 life cycle state 210.2 mm Dia maximum cutting 25.7 mm W keyway 0 deg body half taper angle 164.3 mm Dia hub 3 Nm torque
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | A425-203R63-17H |
| ANSI Code | A425-203R63-17H |
| Catalog Number | 6717899 |
| Country of Origin | SE |
| Gross Weight Per Pack | 2.2000 lb |
| ISO Code | A425-203R63-17H |
| Item Group | 230 |
| Lead Angle | 25 ° |
| Material | Steel |
| Series | CoroMill® 425 |
| Standards | ISO 6462:2011 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 2-1/2 in |
| Cutting Angle | 25 ° |
| Cutting Diameter | 8 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 425N-1707 |
| Insert Style | A425..Rxx |
| Maximum Depth of Cut | 0.0354 in |
| Number of Inserts | 24 |
| Overall Length | 2.4803 in |
| Shank Diameter | 2-1/2 in |
| Shank Type | CIS Arbor |
| Through Coolant | No |
| Without coolant entry |
| On edge screw (through side of insert) |
| 4-bolt adaptive interface |
| On edge screw (through side of insert) |
| 2350 r/min |
| 20 life cycle state |
| 210.2 mm Dia maximum cutting |
| 25.7 mm W keyway |
| 0 deg body half taper angle |
| 164.3 mm Dia hub |
| 3 Nm torque |
