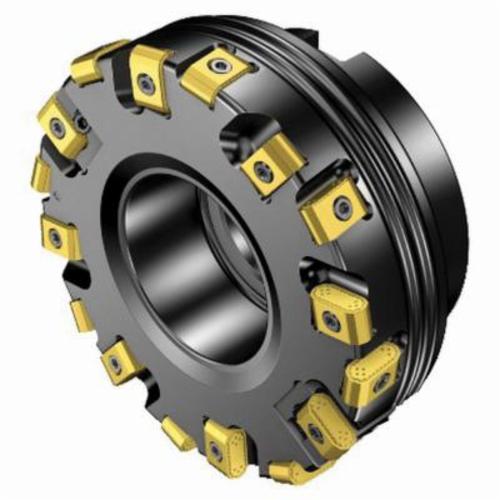

Sandvik Coromant 6717898 CoroMill® 425 Face Milling Cutter, 6 in Cutting, 1-1/2 in Shank, 2.4803 in OAL, A425..Rxx Insert, 0.0354 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 6717898 CoroMill® 425 Face Milling Cutter, 6 in Cutting, 1-1/2 in Shank, 2.4803 in OAL, A425..Rxx Insert, 0.0354 in Max Depth of Cut
SKU1237599
MFGR #6717898
$/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 425, 6 in Cutting Dia, 2.4803 in Overall Length, 0.0354 in Maximum Depth of Cut, A425..Rxx Insert, 18 Inserts, Insert Compatibility: 425N-1707, 1-1/2 in Shank Dia, Right Hand Cutting, 25 deg Cutting Angle, ANSI Code: A425-152R38-17H, ISO Code: A425-152R38-17H, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 425, 6 in Cutting Dia, 2.4803 in Overall Length, 0.0354 in Maximum Depth of Cut, A425..Rxx Insert, 18 Inserts, Insert Compatibility: 425N-1707, 1-1/2 in Shank Dia, Right Hand Cutting, 25 deg Cutting Angle, ANSI Code: A425-152R38-17H, ISO Code: A425-152R38-17H, Steel
Alternate Catalog Number A425-152R38-17H ANSI Code A425-152R38-17H Catalog Number 6717898 Country of Origin SE Gross Weight Per Pack 2.2000 lb ISO Code A425-152R38-17H Item Group 230 Lead Angle 25 ° Material Steel Series CoroMill® 425 Standards ISO 6462:2011 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 1-1/2 in Cutting Angle 25 ° Cutting Diameter 6 in Cutting Direction Right Hand Insert Compatibility 425N-1707 Insert Style A425..Rxx Maximum Depth of Cut 0.0354 in Number of Inserts 18 Overall Length 2.4803 in Shank Diameter 1-1/2 in Shank Type CIS Arbor Through Coolant No Without coolant entry Hexagon socket head cap screw adaptive interface On edge screw (through side of insert) On edge screw (through side of insert) 3130 r/min 20 life cycle state 159.4 mm Dia maximum cutting 16.08 mm W keyway 0 deg body half taper angle 147.8 mm Dia hub 3 Nm torque
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | A425-152R38-17H |
| ANSI Code | A425-152R38-17H |
| Catalog Number | 6717898 |
| Country of Origin | SE |
| Gross Weight Per Pack | 2.2000 lb |
| ISO Code | A425-152R38-17H |
| Item Group | 230 |
| Lead Angle | 25 ° |
| Material | Steel |
| Series | CoroMill® 425 |
| Standards | ISO 6462:2011 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 1-1/2 in |
| Cutting Angle | 25 ° |
| Cutting Diameter | 6 in |
| Cutting Direction | Right Hand |
| Insert Compatibility | 425N-1707 |
| Insert Style | A425..Rxx |
| Maximum Depth of Cut | 0.0354 in |
| Number of Inserts | 18 |
| Overall Length | 2.4803 in |
| Shank Diameter | 1-1/2 in |
| Shank Type | CIS Arbor |
| Through Coolant | No |
| Without coolant entry |
| Hexagon socket head cap screw adaptive interface |
| On edge screw (through side of insert) |
| On edge screw (through side of insert) |
| 3130 r/min |
| 20 life cycle state |
| 159.4 mm Dia maximum cutting |
| 16.08 mm W keyway |
| 0 deg body half taper angle |
| 147.8 mm Dia hub |
| 3 Nm torque |
