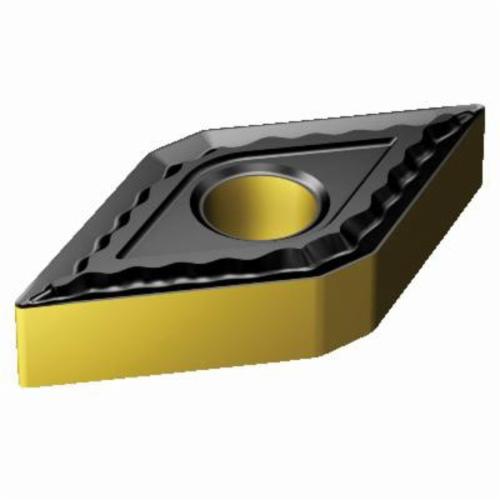

Sandvik Coromant 6707408 T-Max® P Negative Basic Shape Turning Insert, DNMG 432-QM 4305, D-55 deg Diamond, DNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6707408 T-Max® P Negative Basic Shape Turning Insert, DNMG 432-QM 4305, D-55 deg Diamond, DNMG Insert
SKU1254579
MFGR #6707408
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 7.5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.6103 in Length, QM Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4305, ANSI Code: DNMG 432-QM 4305, ISO Code: DNMG 15 04 08-QM 4305, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 7.5 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 0.1874 in Thickness, 0.6103 in Length, QM Chipbreaker, 0.0312 in Corner Radius, 0.2029 in Hole Dia, Manufacturer's Grade: 4305, ANSI Code: DNMG 432-QM 4305, ISO Code: DNMG 15 04 08-QM 4305, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number DNMG 432-QM 4305 ANSI Code DNMG 432-QM 4305 Catalog Number 6707408 Corner Radius 0.0312 in Country of Origin SE Finish MTCVD Coated Gross Weight Per Pack 0.0200 lb Hand of Insert Neutral Hole Diameter 0.2029 in Included Angle 55 deg ISO Code DNMG 15 04 08-QM 4305 Item Group 112 Length 0.6103 in Relief Angle 0 deg Series T-Max® P Thickness 0.1874 in Type Negative Basic Shape Width K, P Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker QM Inscribed Circle 1/2 in Insert Size 55 deg Insert Style DNMG Manufacturer's Grade 4305 Material Carbide Material Grade K/P Maximum Depth of Cut 7.5 mm Shape D-55 deg Diamond Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.2 - 0.5 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DNMG 432-QM 4305 |
| ANSI Code | DNMG 432-QM 4305 |
| Catalog Number | 6707408 |
| Corner Radius | 0.0312 in |
| Country of Origin | SE |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0200 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.2029 in |
| Included Angle | 55 deg |
| ISO Code | DNMG 15 04 08-QM 4305 |
| Item Group | 112 |
| Length | 0.6103 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| Type | Negative Basic Shape |
| Width | K, P |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | QM |
| Inscribed Circle | 1/2 in |
| Insert Size | 55 deg |
| Insert Style | DNMG |
| Manufacturer's Grade | 4305 |
| Material | Carbide |
| Material Grade | K/P |
| Maximum Depth of Cut | 7.5 mm |
| Shape | D-55 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.08 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.2 - 0.5 mm/r cutting feed |
| 20 life cycle state |
