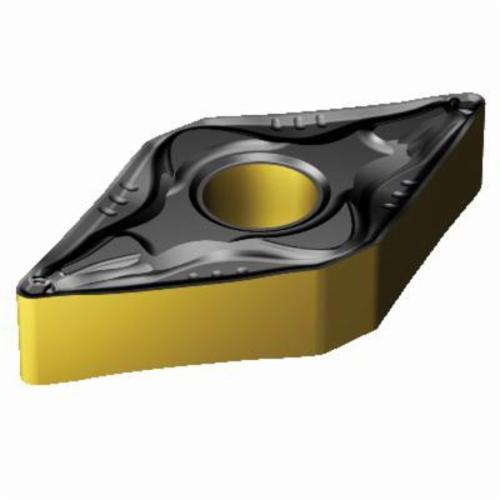

Sandvik Coromant 6707402 T-Max® P Negative Basic Shape Turning Insert, DNMG 332-PM 4305, D-55 deg Diamond, DNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6707402 T-Max® P Negative Basic Shape Turning Insert, DNMG 332-PM 4305, D-55 deg Diamond, DNMG Insert
SKU1254606
MFGR #6707402
$/ea
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.4577 in Length, PM Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 4305, ANSI Code: DNMG 332-PM 4305, ISO Code: DNMG 11 04 08-PM 4305, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, DNMG Insert, D-55 deg Diamond, 5 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.4577 in Length, PM Chipbreaker, 0.0312 in Corner Radius, 0.15 in Hole Dia, Manufacturer's Grade: 4305, ANSI Code: DNMG 332-PM 4305, ISO Code: DNMG 11 04 08-PM 4305, 55 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number DNMG 332-PM 4305 ANSI Code DNMG 332-PM 4305 Catalog Number 6707402 Corner Radius 0.0312 in Country of Origin IN Finish MTCVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Hole Diameter 0.15 in Included Angle 55 deg ISO Code DNMG 11 04 08-PM 4305 Item Group 112 Length 0.4577 in Relief Angle 0 deg Series T-Max® P Thickness 0.1874 in Type Negative Basic Shape Width PM Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PM Inscribed Circle 3/8 in Insert Size DNMG Insert Style DNMG Manufacturer's Grade 4305 Material Carbide Material Grade K/P Maximum Depth of Cut 5 mm Shape D-55 deg Diamond Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.15 - 0.5 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | DNMG 332-PM 4305 |
| ANSI Code | DNMG 332-PM 4305 |
| Catalog Number | 6707402 |
| Corner Radius | 0.0312 in |
| Country of Origin | IN |
| Finish | MTCVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 0.15 in |
| Included Angle | 55 deg |
| ISO Code | DNMG 11 04 08-PM 4305 |
| Item Group | 112 |
| Length | 0.4577 in |
| Relief Angle | 0 deg |
| Series | T-Max® P |
| Thickness | 0.1874 in |
| Type | Negative Basic Shape |
| Width | PM |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PM |
| Inscribed Circle | 3/8 in |
| Insert Size | DNMG |
| Insert Style | DNMG |
| Manufacturer's Grade | 4305 |
| Material | Carbide |
| Material Grade | K/P |
| Maximum Depth of Cut | 5 mm |
| Shape | D-55 deg Diamond |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.15 - 0.5 mm/r cutting feed |
| 20 life cycle state |
