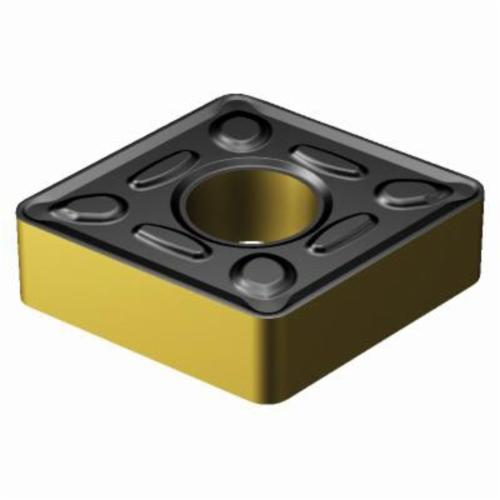

Sandvik Coromant 6707388 T-Max® P Negative Basic Shape Turning Insert, CNMG 544-HM 4305, C-80 deg Diamond, CNMG Insert
Custom_Product_Images_Illustration
Sandvik Coromant 6707388 T-Max® P Negative Basic Shape Turning Insert, CNMG 544-HM 4305, C-80 deg Diamond, CNMG Insert
SKU1238020
MFGR #6707388
Your Cost: $30.11/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 8 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.6346 in Length, HM Chipbreaker, 0.0624 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 4305, ANSI Code: CNMG 544-HM 4305, ISO Code: CNMG 16 06 16-HM 4305, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, CNMG Insert, C-80 deg Diamond, 8 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 0.6346 in Length, HM Chipbreaker, 0.0624 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 4305, ANSI Code: CNMG 544-HM 4305, ISO Code: CNMG 16 06 16-HM 4305, 80 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number CNMG 544-HM 4305 ANSI Code CNMG 544-HM 4305 Catalog Number 6707388 Corner Radius 0.062 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.4900 lb Hole Diameter 1/4 in Included Angle 80 ° ISO Code CNMG 16 06 16-HM 4305 Item Group 112 Relief Angle 0 ° Series T-Max® P Thickness 1/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker HM Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 5/8 in Insert Size 544 Insert Style CNMG Manufacturer's Grade 4305 Material Carbide Material Grade K, P Maximum Depth of Cut 0.315 in Rake Negative Seat Size 16 Shape Rhombic T5315 grade fine grained substrate with a modified cobalt content to increase strength Thick MT-CVD coating combining the advantages of TiCN and Al2O3 layers Special finish for coating Versatile material designed primarily for turning gray and ductile cast iron Medium to high cutting speeds Suitable for continuous and interrupted cut 0.3 - 0.9 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CNMG 544-HM 4305 |
| ANSI Code | CNMG 544-HM 4305 |
| Catalog Number | 6707388 |
| Corner Radius | 0.062 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.4900 lb |
| Hole Diameter | 1/4 in |
| Included Angle | 80 ° |
| ISO Code | CNMG 16 06 16-HM 4305 |
| Item Group | 112 |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | HM |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 5/8 in |
| Insert Size | 544 |
| Insert Style | CNMG |
| Manufacturer's Grade | 4305 |
| Material | Carbide |
| Material Grade | K, P |
| Maximum Depth of Cut | 0.315 in |
| Rake | Negative |
| Seat Size | 16 |
| Shape | Rhombic |
| T5315 grade fine grained substrate with a modified cobalt content to increase strength |
| Thick MT-CVD coating combining the advantages of TiCN and Al2O3 layers |
| Special finish for coating |
| Versatile material designed primarily for turning gray and ductile cast iron |
| Medium to high cutting speeds |
| Suitable for continuous and interrupted cut |
| 0.3 - 0.9 mm/r cutting feed |
| 20 life cycle state |
