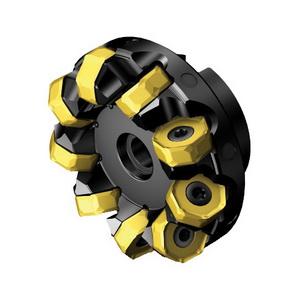

Sandvik Coromant 6702286 CoroMill® 745 Face Milling Cutter, 9.843 to 10.409 in Cutting, 1-7/8 in Shank, 2.48 in OAL, 0.205 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 6702286 CoroMill® 745 Face Milling Cutter, 9.843 to 10.409 in Cutting, 1-7/8 in Shank, 2.48 in OAL, 0.205 in Max Depth of Cut
SKU1244600
MFGR #6702286
$/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 745, 9.843 to 10.409 in Cutting Dia, 2.48 in Overall Length, 0.205 in Maximum Depth of Cut, 1-7/8 in Shank Dia, Arbor Shank, Right Hand Cutting, 42 deg Cutting Angle, ANSI Code: A745-250J47-21H, ISO Code: A745-250J47-21H, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 745, 9.843 to 10.409 in Cutting Dia, 2.48 in Overall Length, 0.205 in Maximum Depth of Cut, 1-7/8 in Shank Dia, Arbor Shank, Right Hand Cutting, 42 deg Cutting Angle, ANSI Code: A745-250J47-21H, ISO Code: A745-250J47-21H, Steel
Alternate Catalog Number A745-250J47-21H ANSI Code A745-250J47-21H Catalog Number 6702286 Country of Origin US Gross Weight Per Pack 31.0400 lb ISO Code A745-250J47-21H Item Group 450 Lead Angle 42 ° Material Steel Series CoroMill® 745 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 1-7/8 in Cutting Angle 42 ° Cutting Diameter 9.843 to 10.409 in Cutting Direction Right Hand Maximum Depth of Cut 0.205 in Number of Inserts 26 Overall Length 2.48 in Shank Diameter 1-7/8 in Shank Type CIS Arbor Through Coolant Yes CoroMill 745 size 2109 cutting item interface identifiers 2998 rpm 0 deg ramping External coolant 8.851 ft-lb torque 2.626 in Dia bolt circle CoroMill 745 size 2109 cutting item interface identifiers 26 Peripheral effective cutting edge 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | A745-250J47-21H |
| ANSI Code | A745-250J47-21H |
| Catalog Number | 6702286 |
| Country of Origin | US |
| Gross Weight Per Pack | 31.0400 lb |
| ISO Code | A745-250J47-21H |
| Item Group | 450 |
| Lead Angle | 42 ° |
| Material | Steel |
| Series | CoroMill® 745 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 1-7/8 in |
| Cutting Angle | 42 ° |
| Cutting Diameter | 9.843 to 10.409 in |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut | 0.205 in |
| Number of Inserts | 26 |
| Overall Length | 2.48 in |
| Shank Diameter | 1-7/8 in |
| Shank Type | CIS Arbor |
| Through Coolant | Yes |
| CoroMill 745 size 2109 cutting item interface identifiers |
| 2998 rpm |
| 0 deg ramping |
| External coolant |
| 8.851 ft-lb torque |
| 2.626 in Dia bolt circle |
| CoroMill 745 size 2109 cutting item interface identifiers |
| 26 Peripheral effective cutting edge |
| 20 life cycle state |
