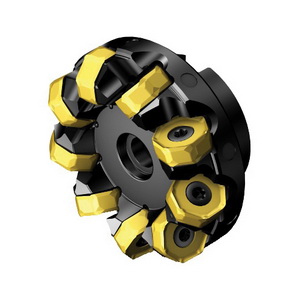

Sandvik Coromant 6702268 CoroMill® 745 Face Milling Cutter, 5 to 5.598 in Cutting, 1-1/2 in Shank, 2.48 in OAL, 0.205 in Max Depth of Cut
Custom_Product_Images_Illustration
Sandvik Coromant 6702268 CoroMill® 745 Face Milling Cutter, 5 to 5.598 in Cutting, 1-1/2 in Shank, 2.48 in OAL, 0.205 in Max Depth of Cut
SKU1244615
MFGR #6702268
$/ea
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 745, 5 to 5.598 in Cutting Dia, 2.48 in Overall Length, 0.205 in Maximum Depth of Cut, 1-1/2 in Shank Dia, Arbor Shank, Right Hand Cutting, 42 deg Cutting Angle, ANSI Code: A745-127R38-21H, ISO Code: A745-127R38-21H, Steel
Sandvik Coromant Face Milling Cutter, Series: CoroMill® 745, 5 to 5.598 in Cutting Dia, 2.48 in Overall Length, 0.205 in Maximum Depth of Cut, 1-1/2 in Shank Dia, Arbor Shank, Right Hand Cutting, 42 deg Cutting Angle, ANSI Code: A745-127R38-21H, ISO Code: A745-127R38-21H, Steel
Alternate Catalog Number A745-127R38-21H ANSI Code A745-127R38-21H Catalog Number 6702268 Country of Origin US Gross Weight Per Pack 2.2000 lb ISO Code A745-127R38-21H Item Group 450 Lead Angle 42 ° Material Steel Series CoroMill® 745 Standards ISO 6462:2011 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Arbor Hole Diameter 1-1/2 in Cutting Angle 42 ° Cutting Diameter 5 to 5.598 in Cutting Direction Right Hand Maximum Depth of Cut 0.205 in Number of Inserts 14 Overall Length 2.48 in Shank Diameter 1-1/2 in Shank Type Arbor Through Coolant Yes Axial concentric and radial coolant entry A standard letter CoroMill 745 size 2109 cutting item interface identifiers 0 deg ramping Axial concentric and radial coolant entry 8.851 ft-lb torque A standard letter CoroMill 745 size 2109 cutting item interface identifiers 14 Peripheral effective cutting edge 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | A745-127R38-21H |
| ANSI Code | A745-127R38-21H |
| Catalog Number | 6702268 |
| Country of Origin | US |
| Gross Weight Per Pack | 2.2000 lb |
| ISO Code | A745-127R38-21H |
| Item Group | 450 |
| Lead Angle | 42 ° |
| Material | Steel |
| Series | CoroMill® 745 |
| Standards | ISO 6462:2011 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Arbor Hole Diameter | 1-1/2 in |
| Cutting Angle | 42 ° |
| Cutting Diameter | 5 to 5.598 in |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut | 0.205 in |
| Number of Inserts | 14 |
| Overall Length | 2.48 in |
| Shank Diameter | 1-1/2 in |
| Shank Type | Arbor |
| Through Coolant | Yes |
| Axial concentric and radial coolant entry |
| A standard letter |
| CoroMill 745 size 2109 cutting item interface identifiers |
| 0 deg ramping |
| Axial concentric and radial coolant entry |
| 8.851 ft-lb torque |
| A standard letter |
| CoroMill 745 size 2109 cutting item interface identifiers |
| 14 Peripheral effective cutting edge |
| 20 life cycle state |
