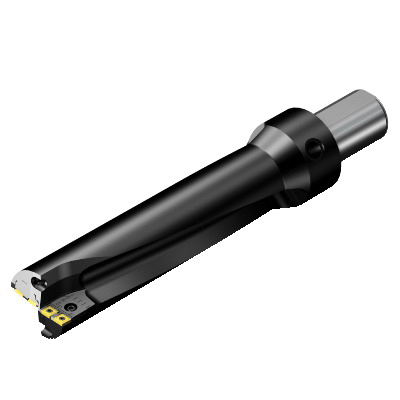

Sandvik Coromant 6660429 CoroDrill® 880 Insert Drill, 3.0708 in Drill, 2 in Shank, 9.3307 in Maximum Drill, 3.03846
Custom_Product_Images_Illustration
Sandvik Coromant 6660429 CoroDrill® 880 Insert Drill, 3.0708 in Drill, 2 in Shank, 9.3307 in Maximum Drill, 3.03846
SKU1243540
MFGR #6660429
$/ea
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 3.0708 in Drill, 2 in Shank Dia, Cylinder Shank, 9.3307 in Maximum Drill Depth, 15.2362 in Overall Length, 3.03846 Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: 880-070406H-C-GM (MIIDM) and 880-0704W06H-P-GM (MIIDM), 9.3307 in Flute Length
Sandvik Coromant Insert Drill, Series: CoroDrill® 880, 3.0708 in Drill, 2 in Shank Dia, Cylinder Shank, 9.3307 in Maximum Drill Depth, 15.2362 in Overall Length, 3.03846 Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: 880-070406H-C-GM (MIIDM) and 880-0704W06H-P-GM (MIIDM), 9.3307 in Flute Length
Alternate Catalog Number 880-D0780LX50-03 Catalog Number 6660429 Country of Origin US Drill Depth by Diameter Ratio 3.039XD Gross Weight Per Pack 2.2000 lb Item Group 465 Modular Connection Size 2 in Overall Length 15.236 in Series CoroDrill® 880 Standards ISO 13399 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Diameter 3.071 in Drill Size 3.071 in Flute Length 10.045 in Insert Compatibility 880-070406H-C-GM (MIIDM), 880-0704W06H-P-GM (MIIDM) Maximum Drill Depth 9.331 in Shank Diameter 2 in Shank Type Cylindrical Through Coolant Yes Wiper geometry for best surface finish or higher feed possibilities|Easy identification due to laser marking with drill insert and screw codes on the drill shank|Two or four cutting edges depending on drill diameter|Optimized chip channels for accelerated chip evacuation|Optimized geometries assure high performance in most materials|Optimized grades assure longer insert tool life 73 mm Dia body 80 mm L clamping 1.4 mm L point 5000 r/min +/-0.3 mm achievable hole tolerance Decentral over flange and axial coolant entry Axial inclined coolant exit 10 bar coolant 40 - 60 deg insert screw clamping EFW feed direction SSK flute 15 deg right hand helix flute 5 deg rake orthogonal 48.6 mm H shank 0 deg inclination, 2 flutes 88 deg cutting edge 20 life cycle state 255.15 mm L steel body Features the new Sandvik Coromant innovation, Step technology
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Alternate Catalog Number | 880-D0780LX50-03 |
| Catalog Number | 6660429 |
| Country of Origin | US |
| Drill Depth by Diameter Ratio | 3.039XD |
| Gross Weight Per Pack | 2.2000 lb |
| Item Group | 465 |
| Modular Connection Size | 2 in |
| Overall Length | 15.236 in |
| Series | CoroDrill® 880 |
| Standards | ISO 13399 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Diameter | 3.071 in |
| Drill Size | 3.071 in |
| Flute Length | 10.045 in |
| Insert Compatibility | 880-070406H-C-GM (MIIDM), 880-0704W06H-P-GM (MIIDM) |
| Maximum Drill Depth | 9.331 in |
| Shank Diameter | 2 in |
| Shank Type | Cylindrical |
| Through Coolant | Yes |
| Wiper geometry for best surface finish or higher feed possibilities|Easy identification due to laser marking with drill insert and screw codes on the drill shank|Two or four cutting edges depending on drill diameter|Optimized chip channels for accelerated chip evacuation|Optimized geometries assure high performance in most materials|Optimized grades assure longer insert tool life |
| 73 mm Dia body |
| 80 mm L clamping |
| 1.4 mm L point |
| 5000 r/min |
| +/-0.3 mm achievable hole tolerance |
| Decentral over flange and axial coolant entry |
| Axial inclined coolant exit |
| 10 bar coolant |
| 40 - 60 deg insert screw clamping |
| EFW feed direction |
| SSK flute |
| 15 deg right hand helix flute |
| 5 deg rake orthogonal |
| 48.6 mm H shank |
| 0 deg inclination, 2 flutes |
| 88 deg cutting edge |
| 20 life cycle state |
| 255.15 mm L steel body |
| Features the new Sandvik Coromant innovation, Step technology |
